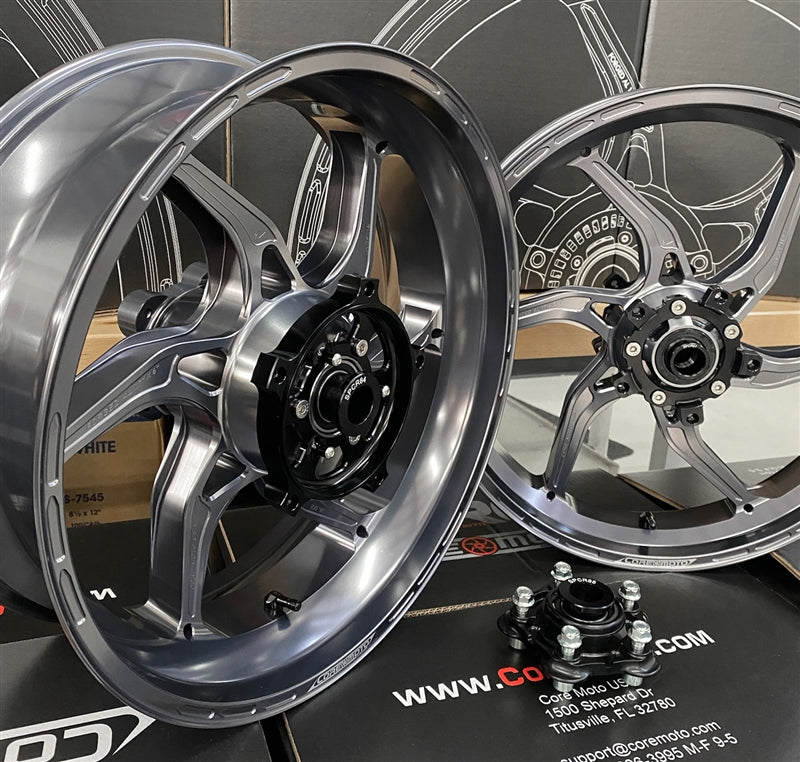

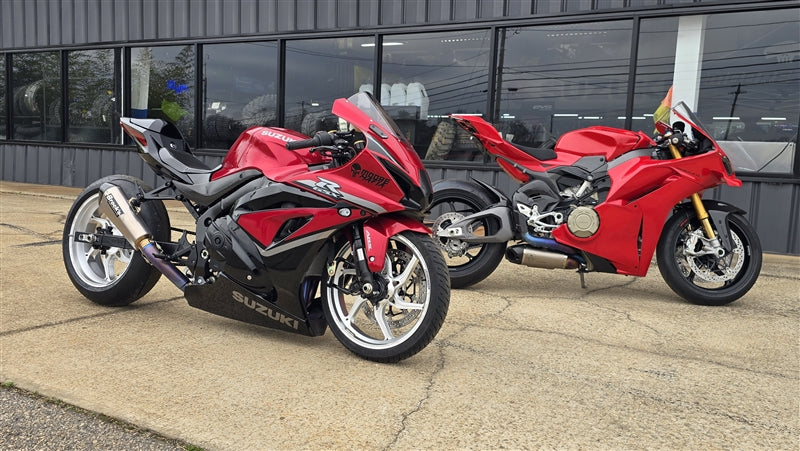

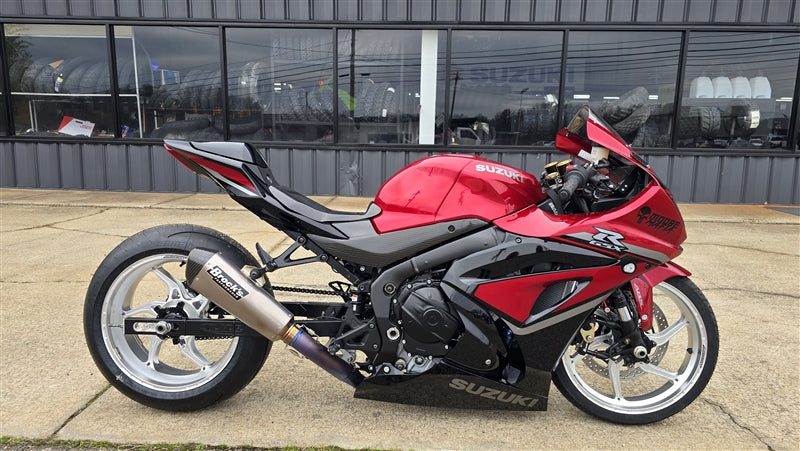

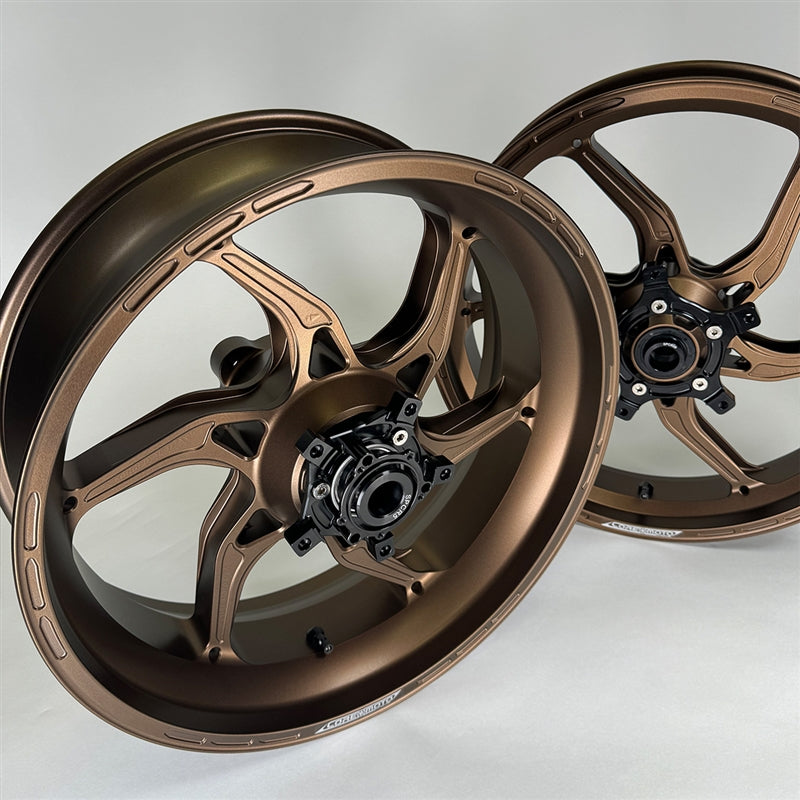

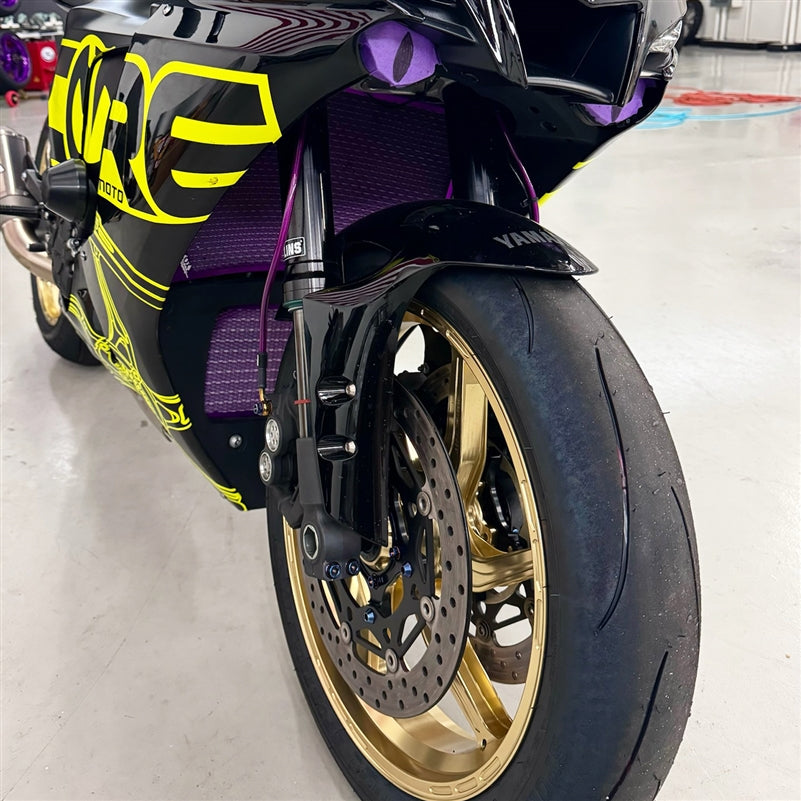

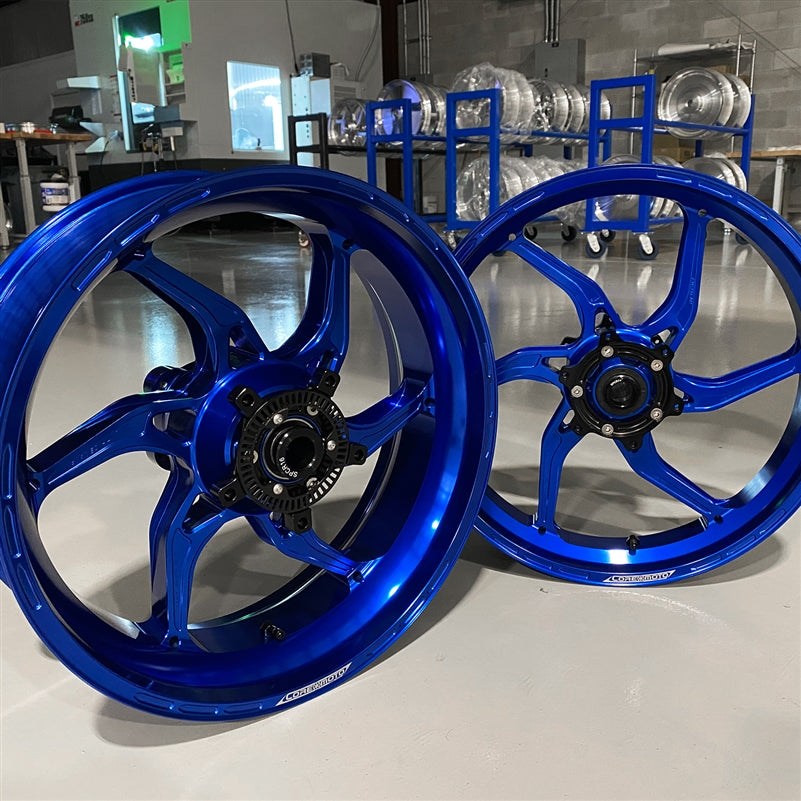

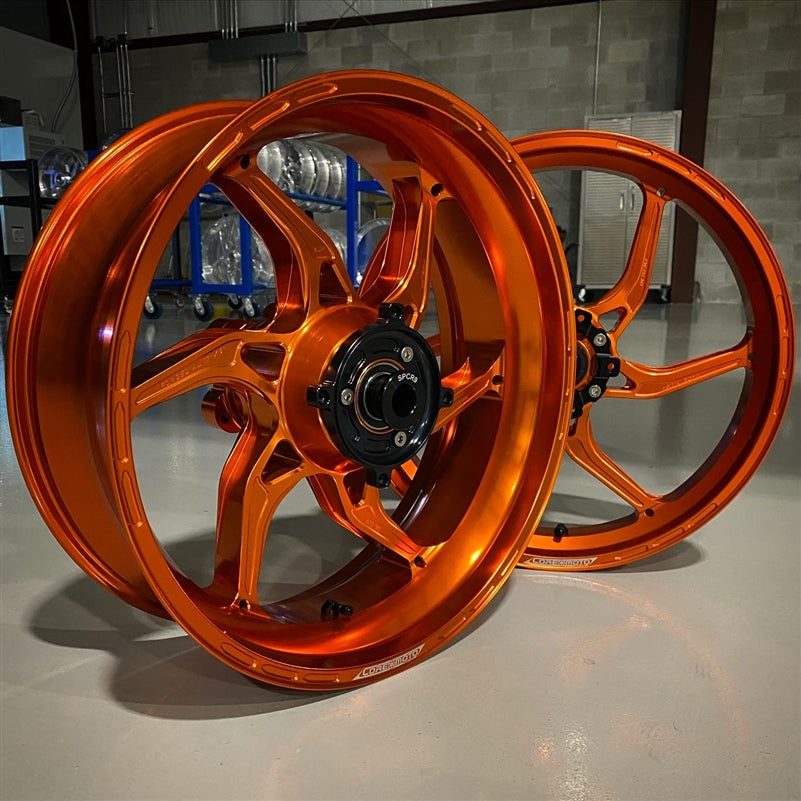

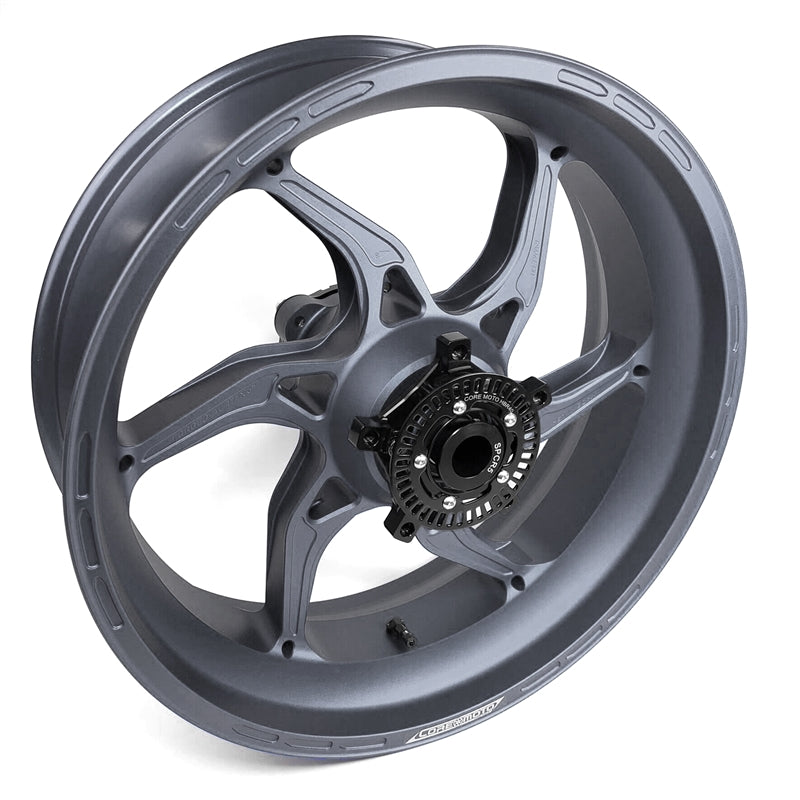

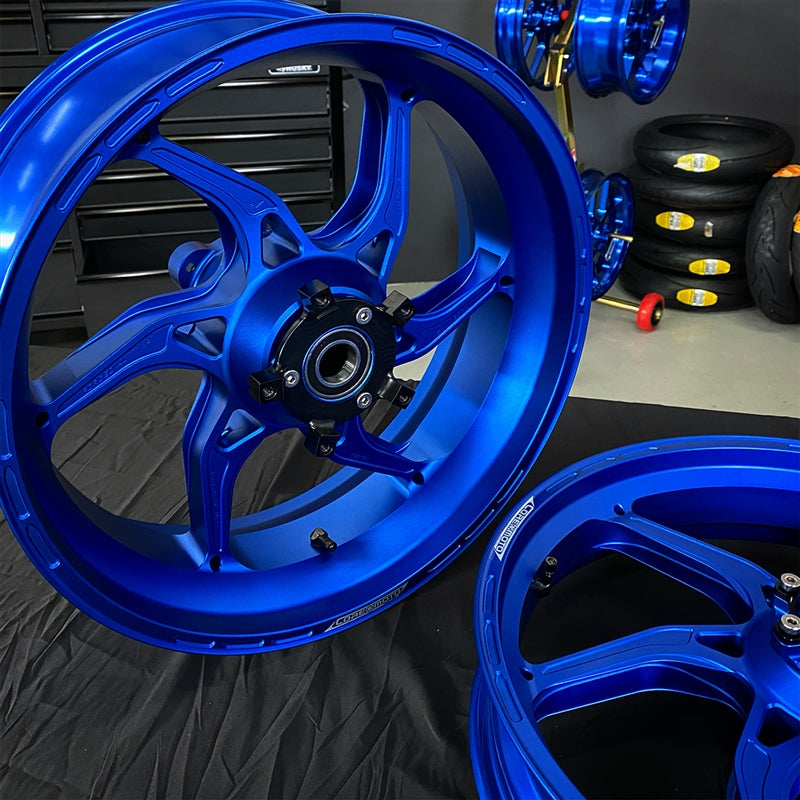

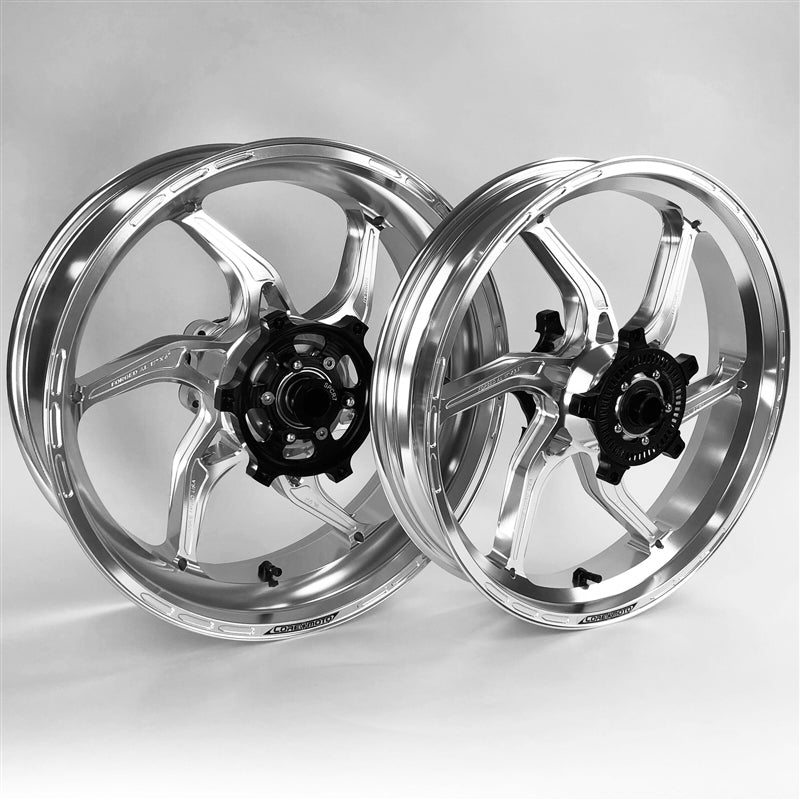

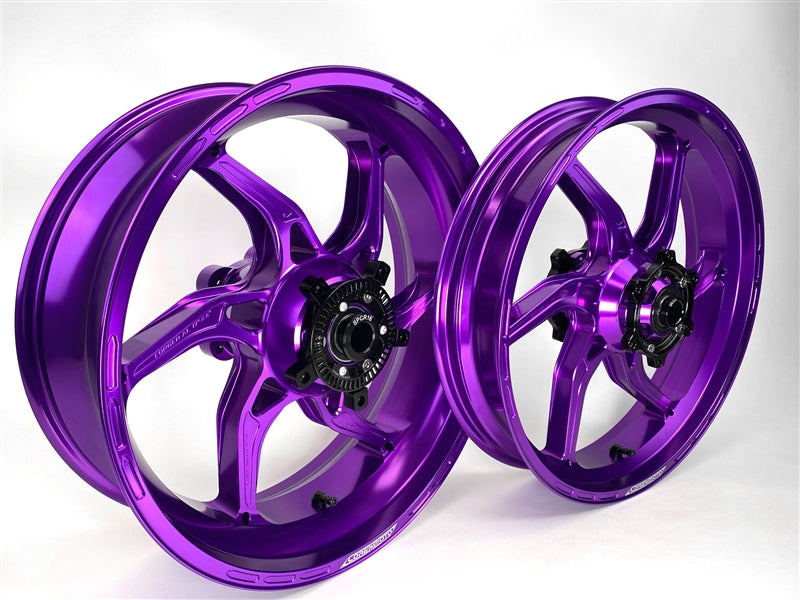

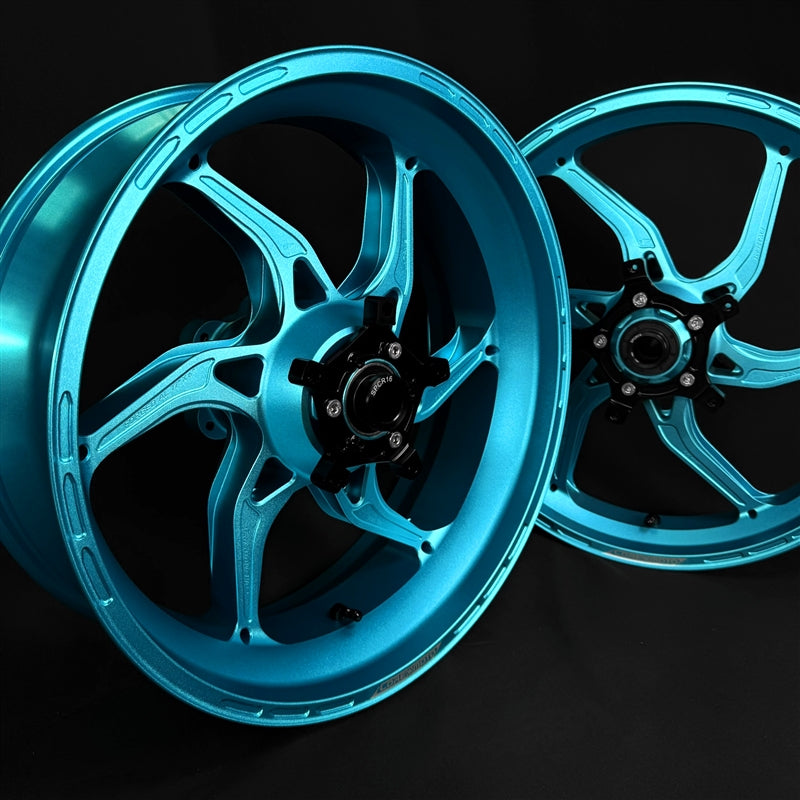

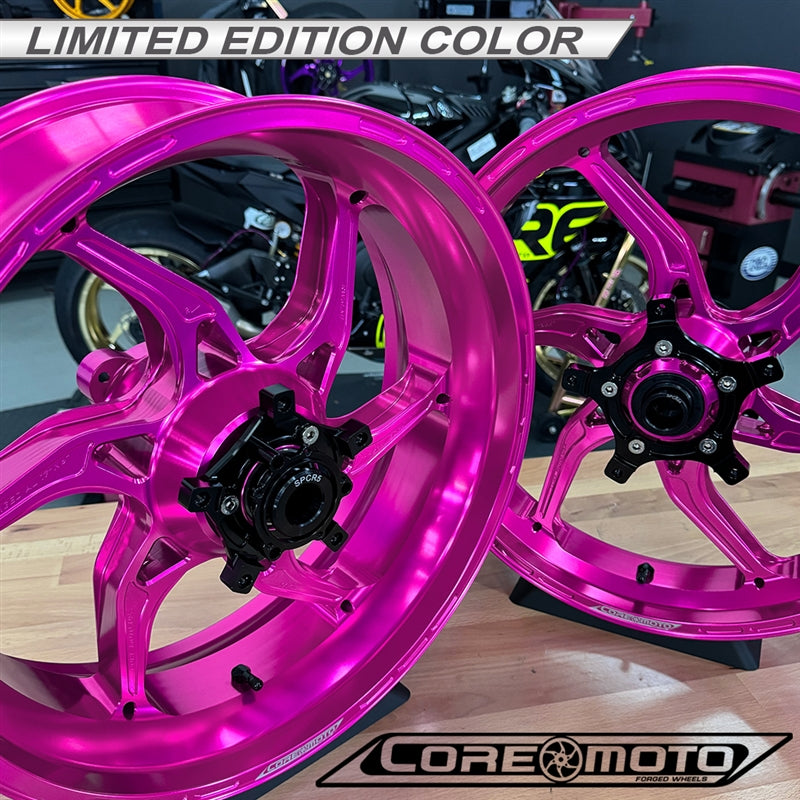

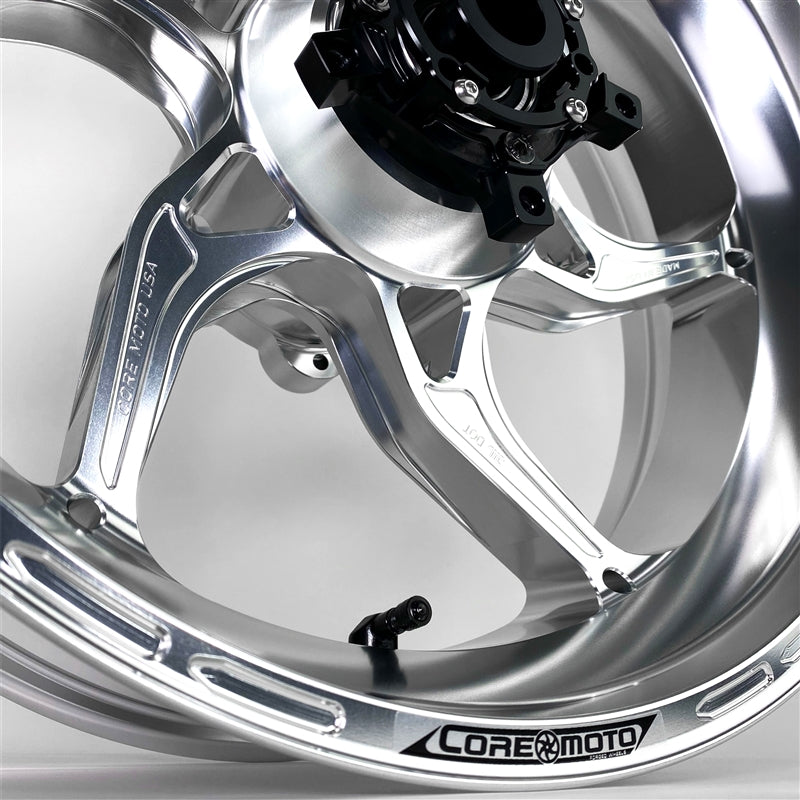

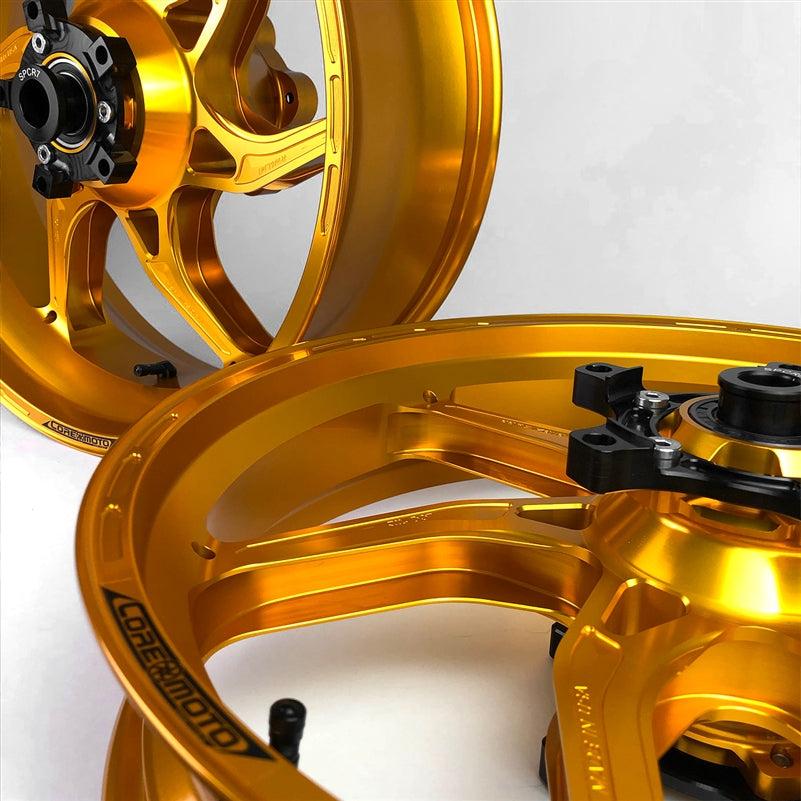

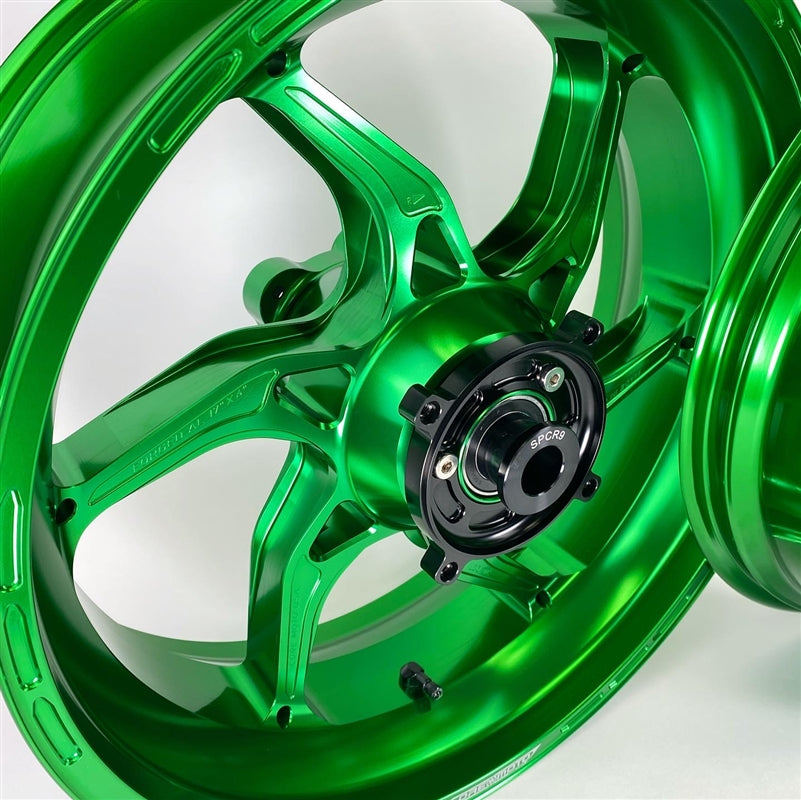

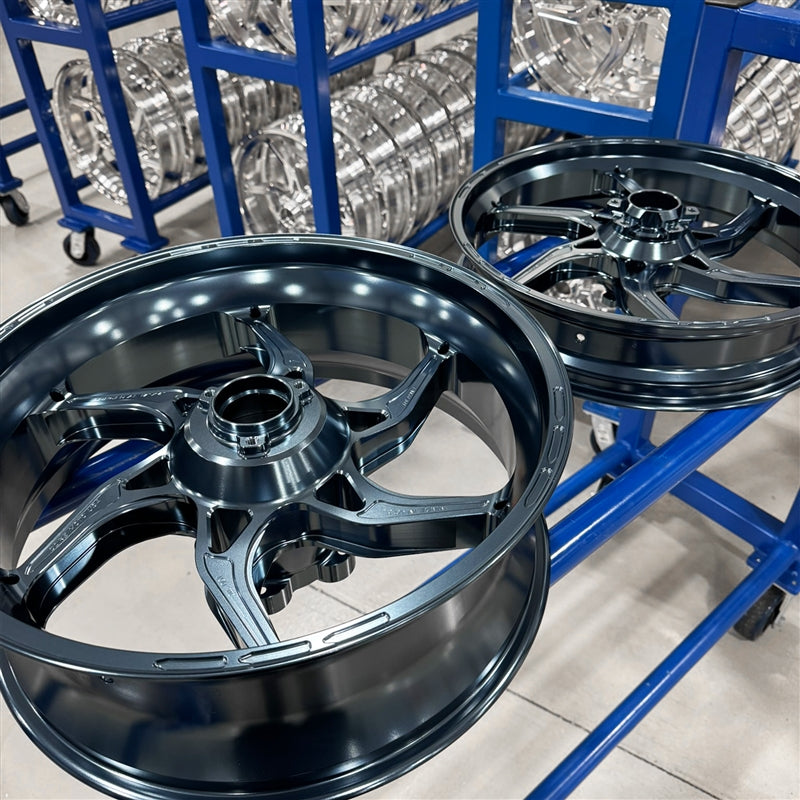

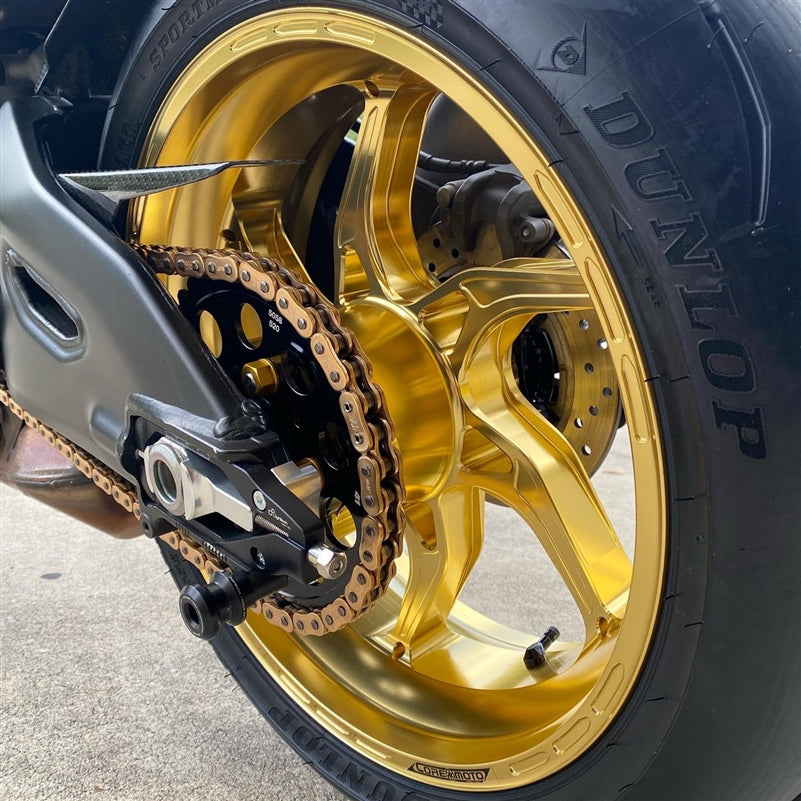

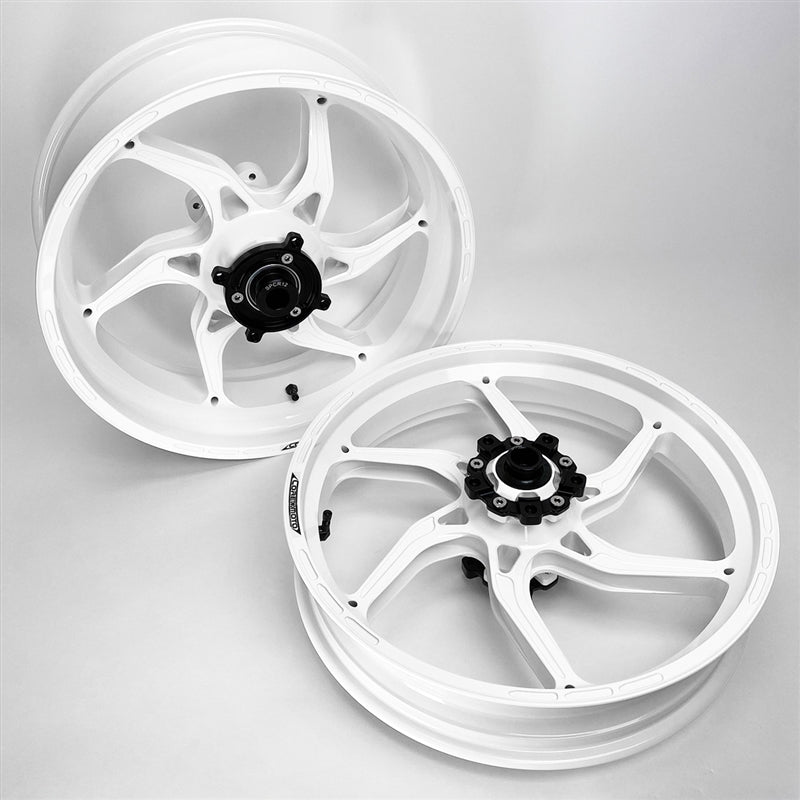

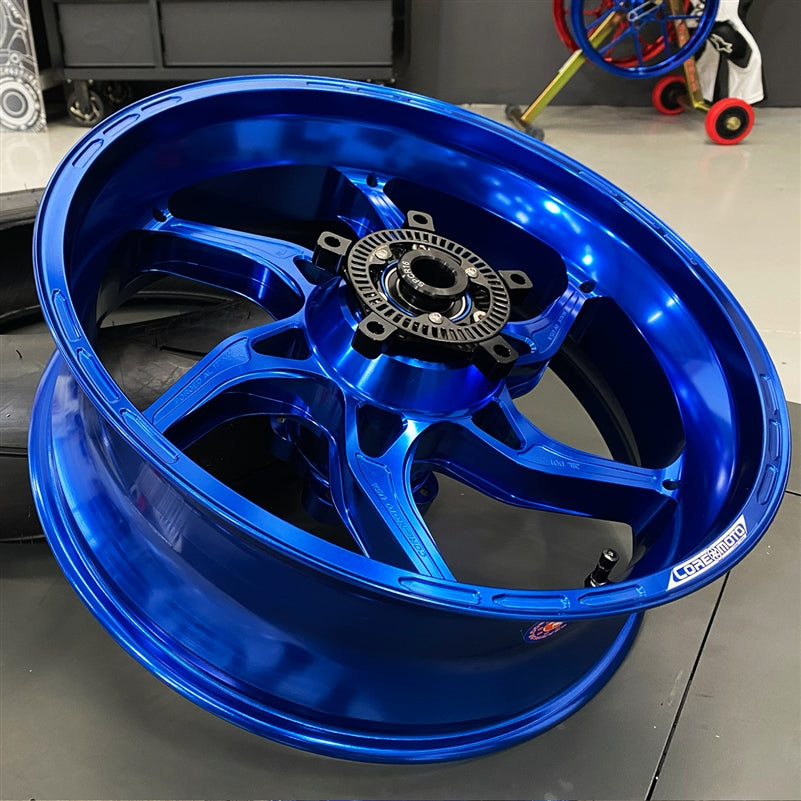

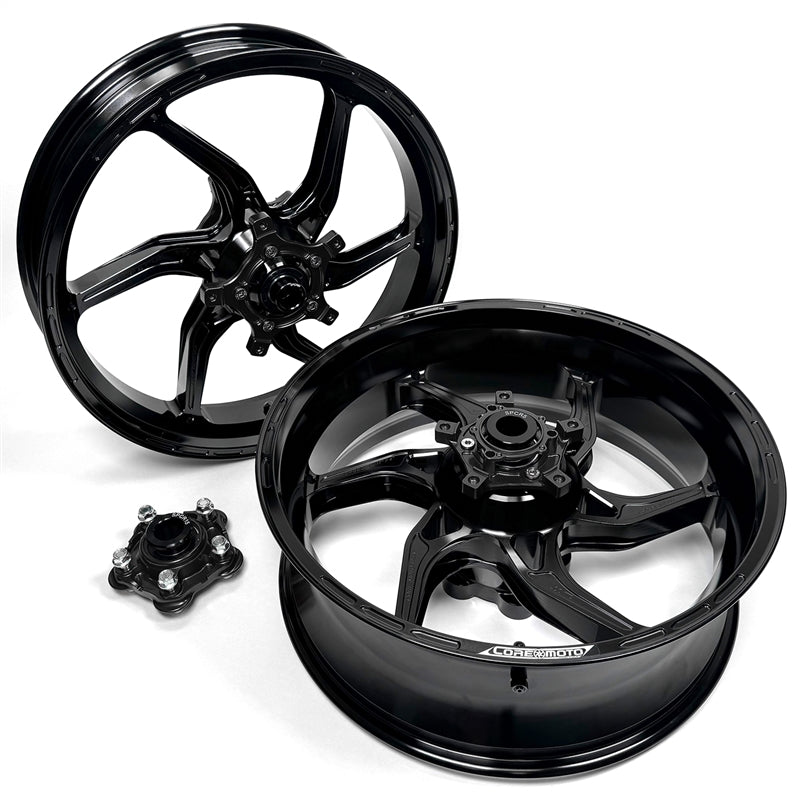

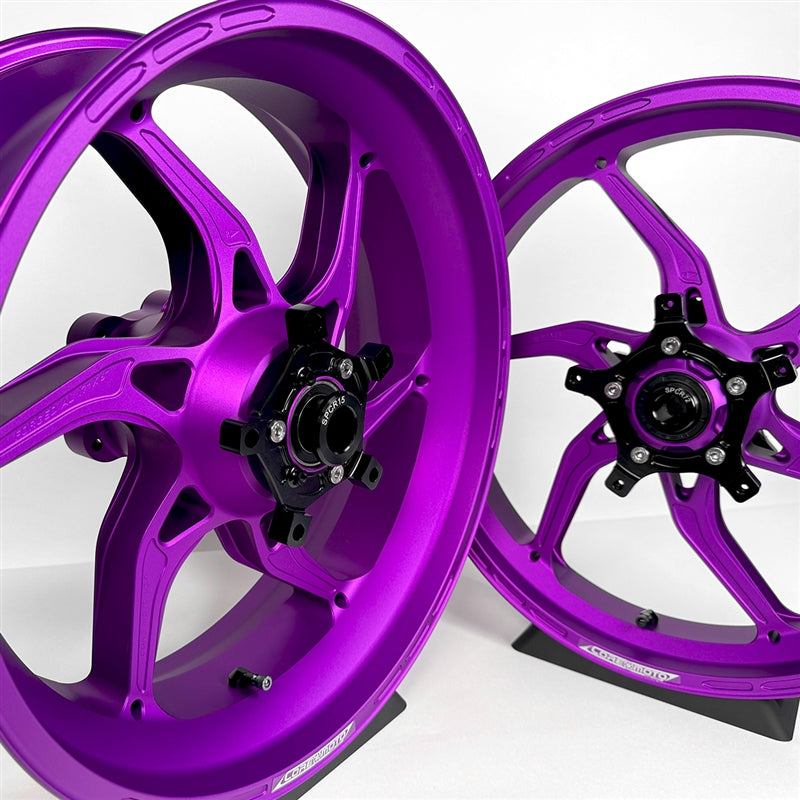

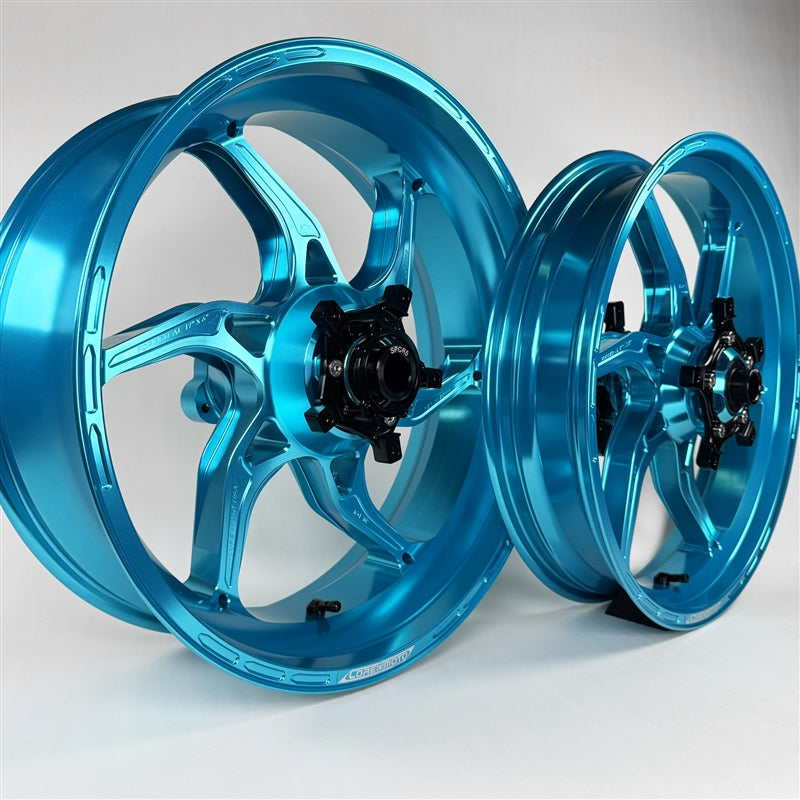

Core Moto Apex-6 Forged Wheel Set — Suzuki GSX-R1000 (2001-2004)

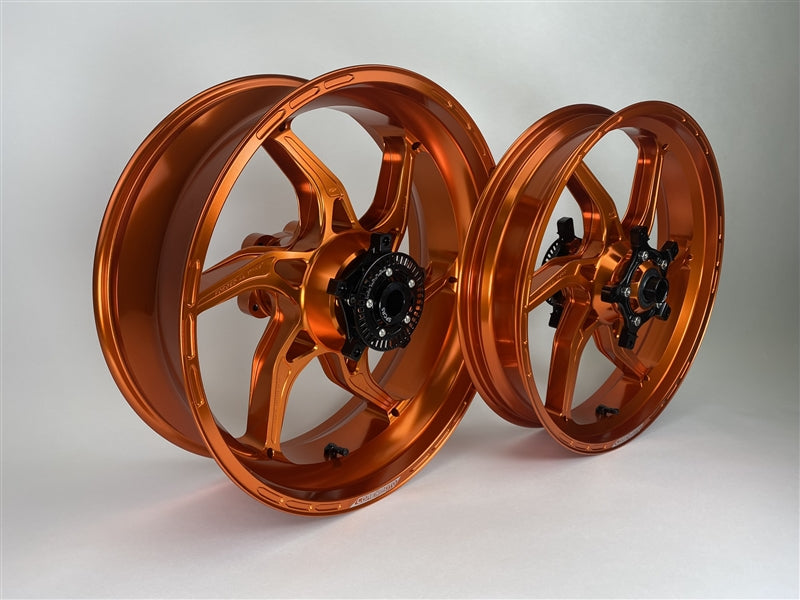

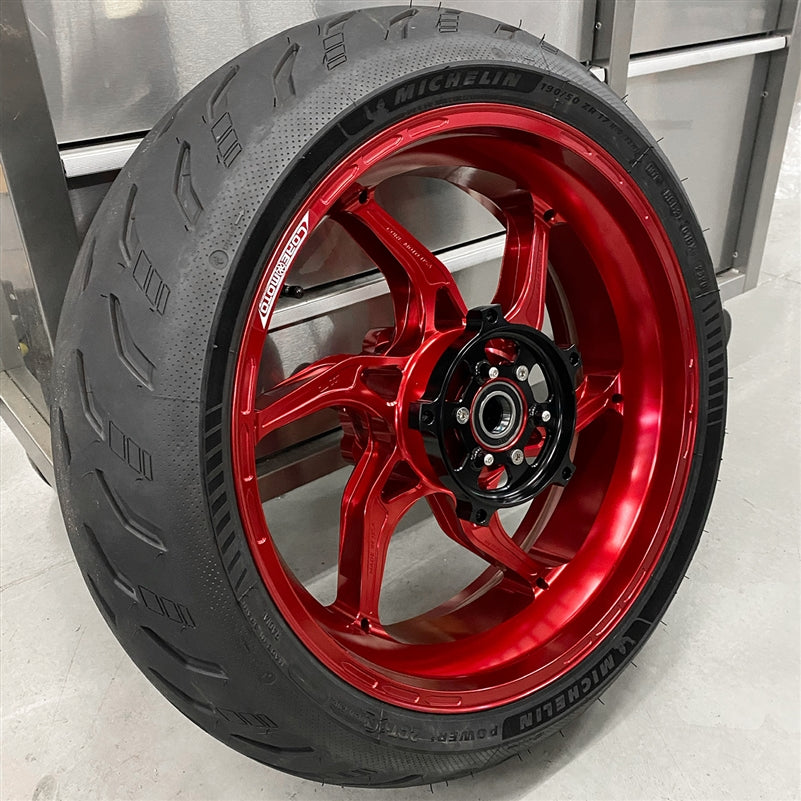

Core Moto Apex-6 Ultralight Superbike forged aluminum wheel set for the Suzuki GSX-R1000 (2001-2004). Proudly made in the USA.

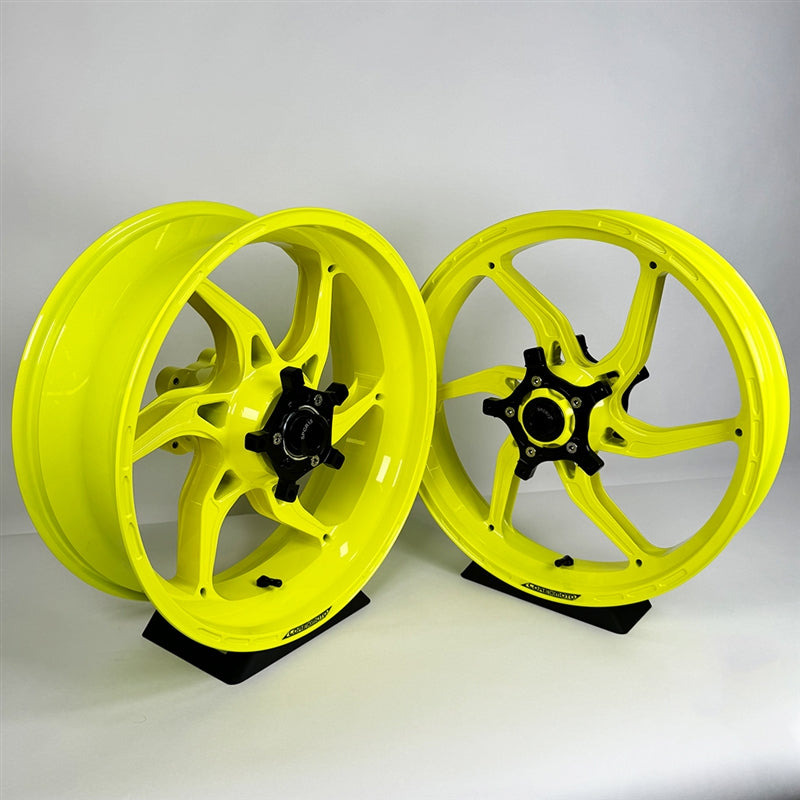

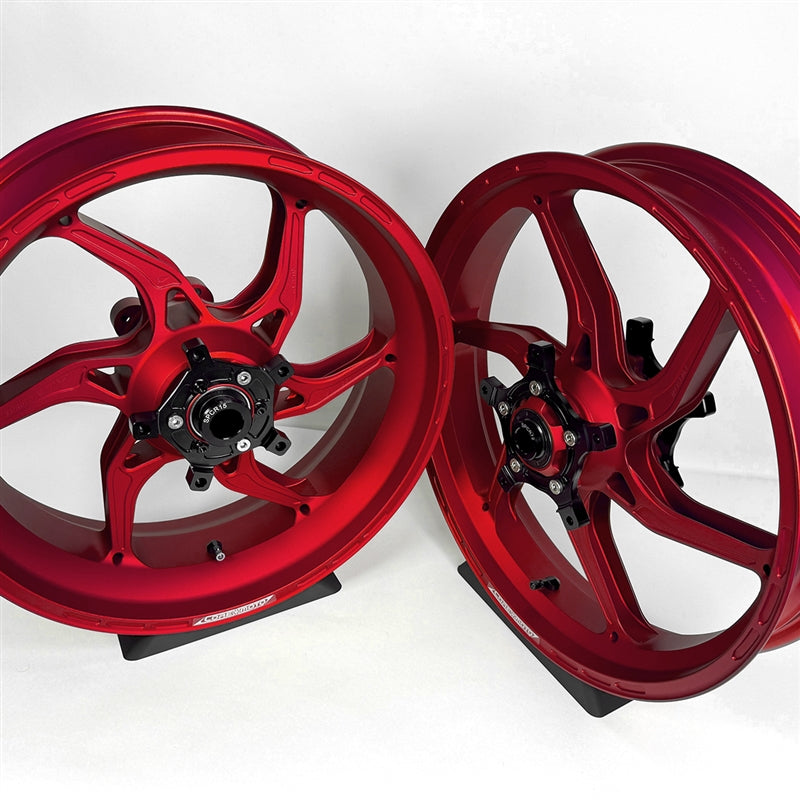

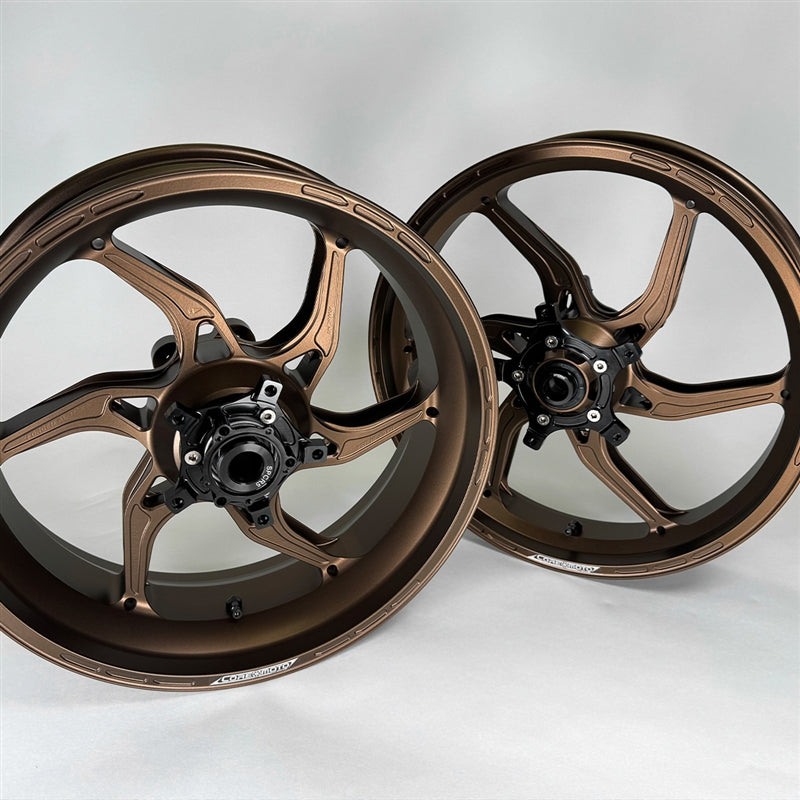

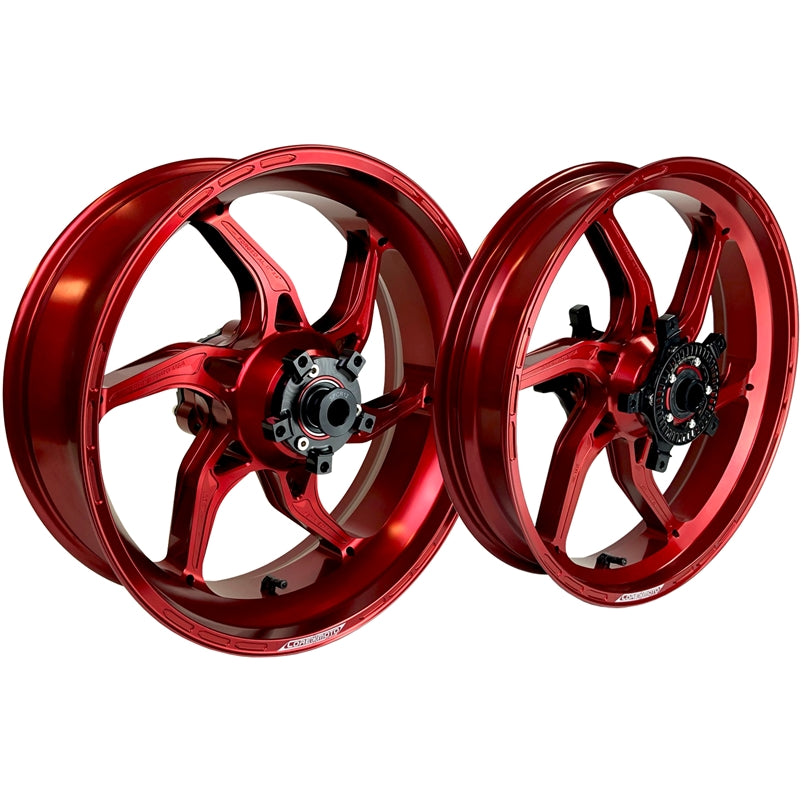

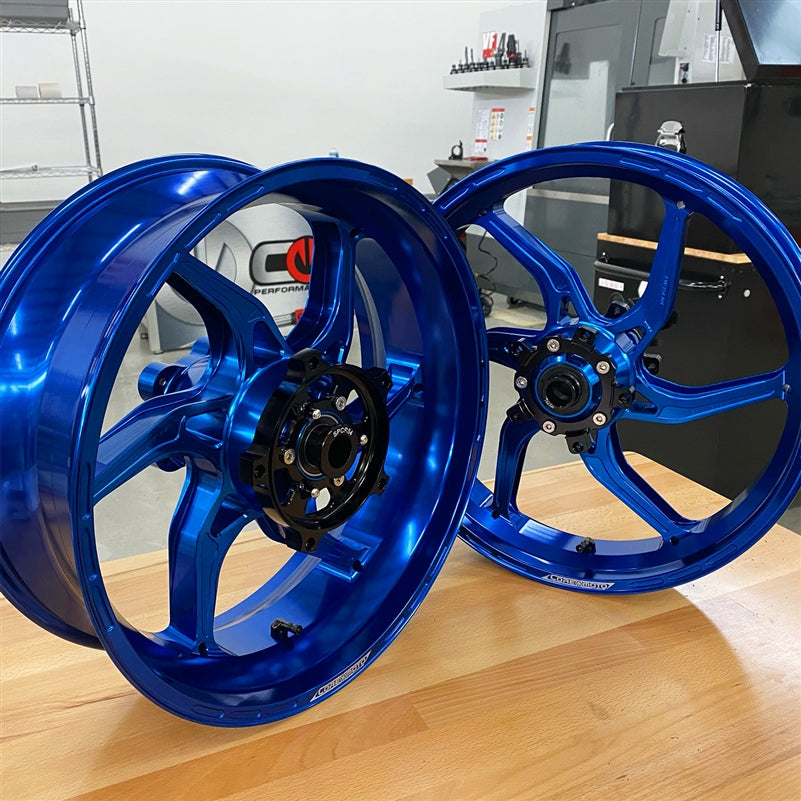

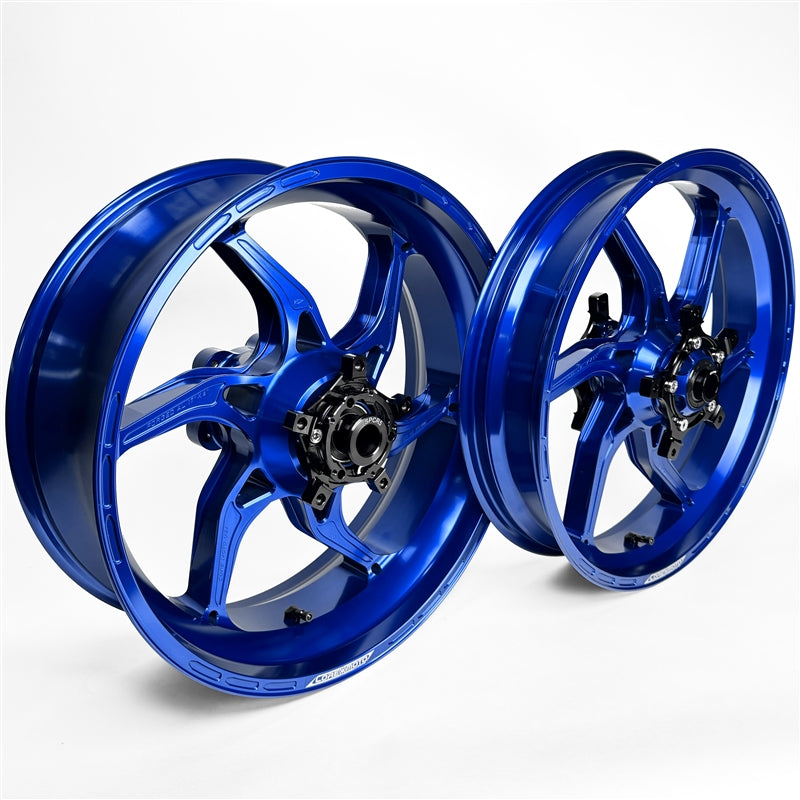

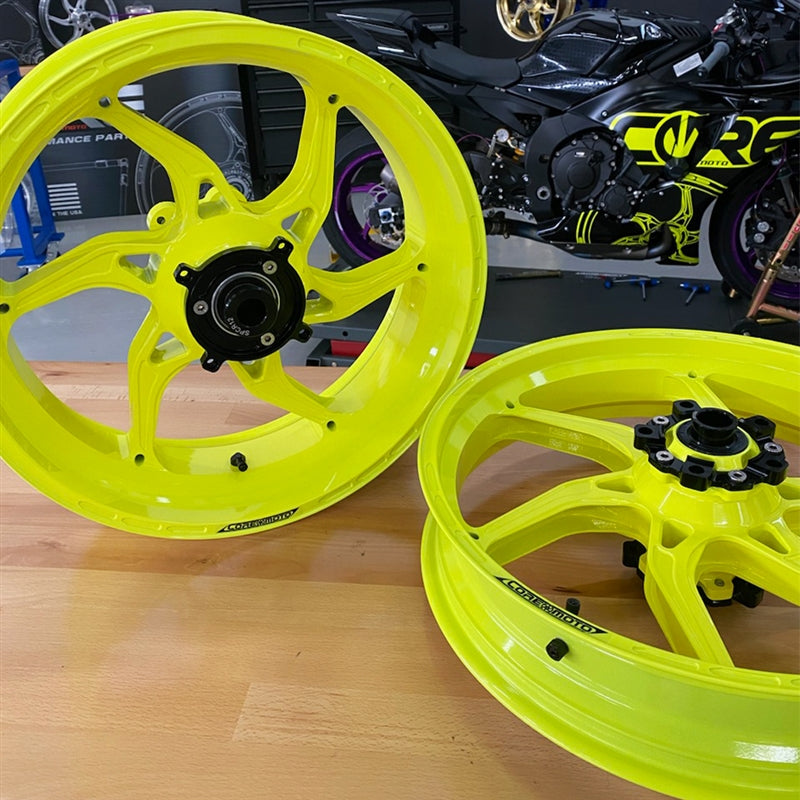

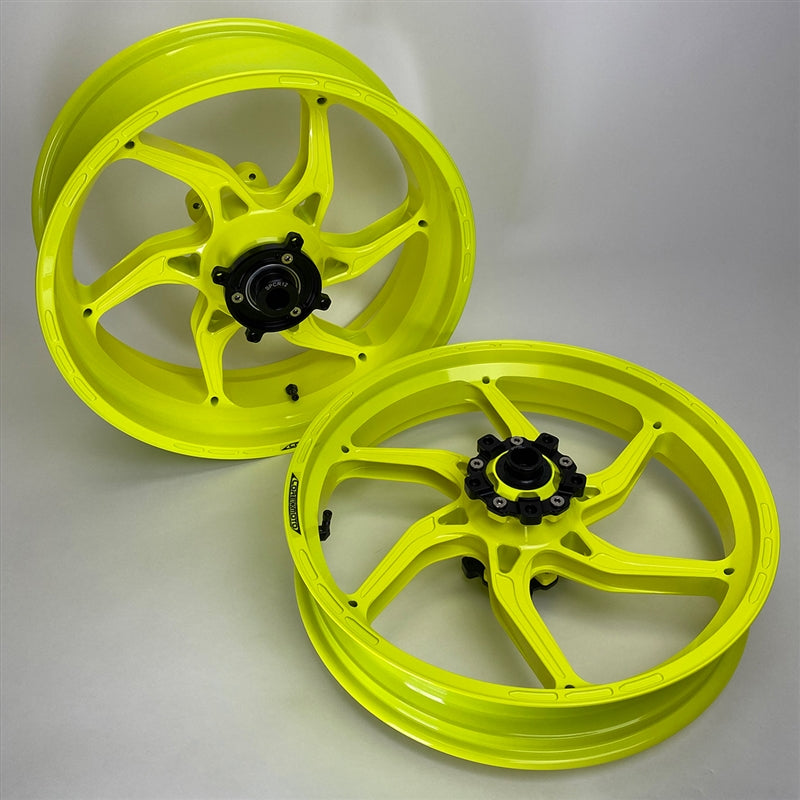

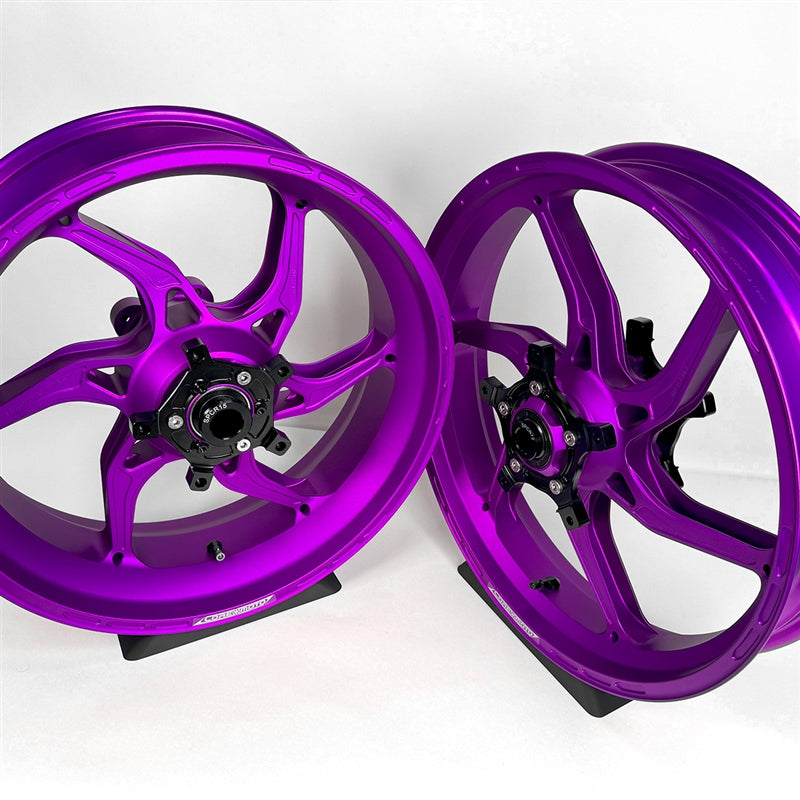

• Sold as a set: front and rear, fully assembled
• No modification to the bike required

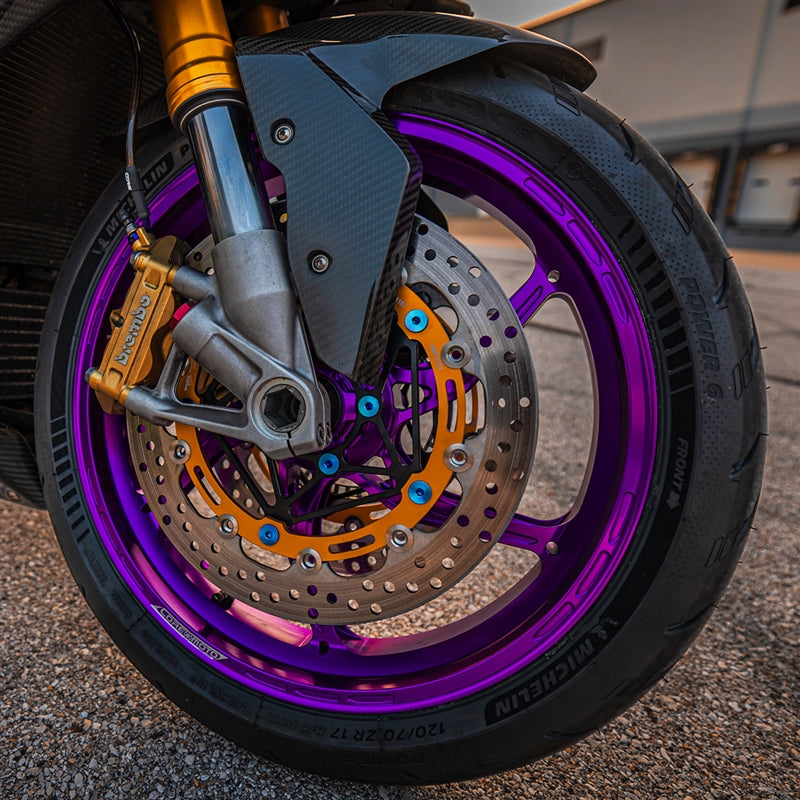

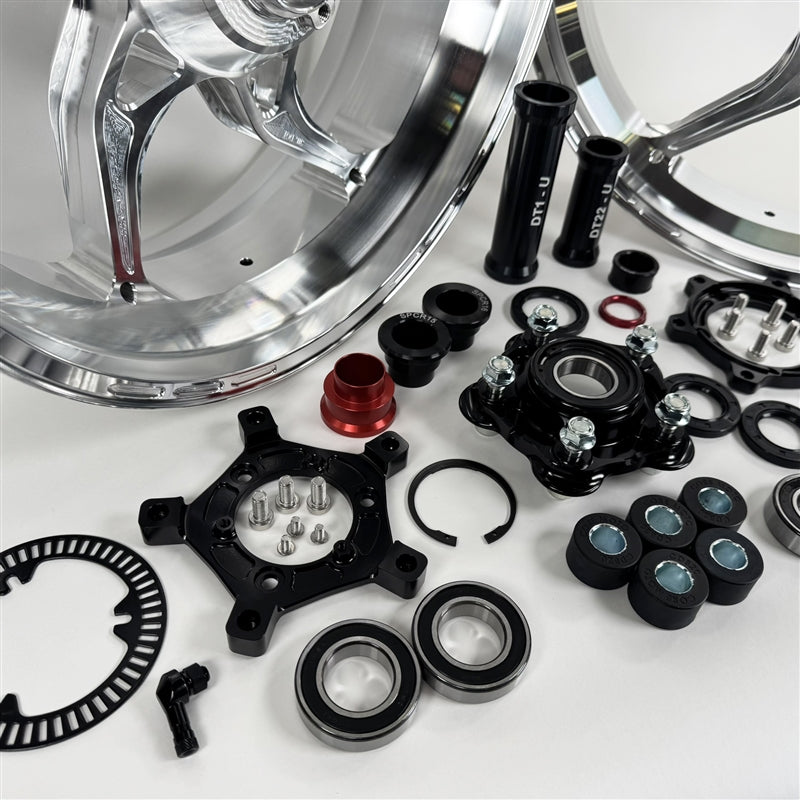

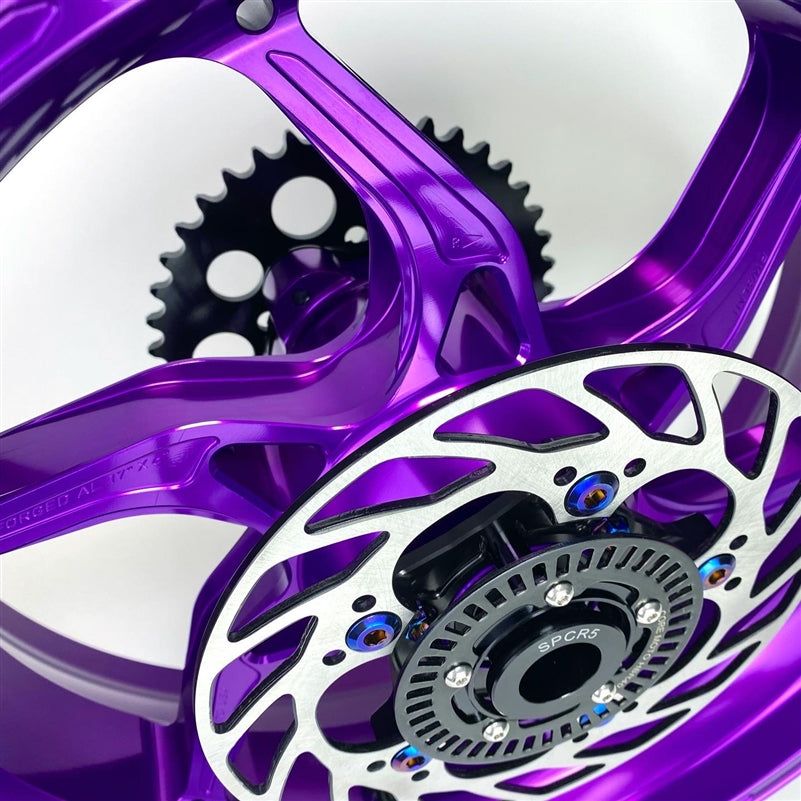

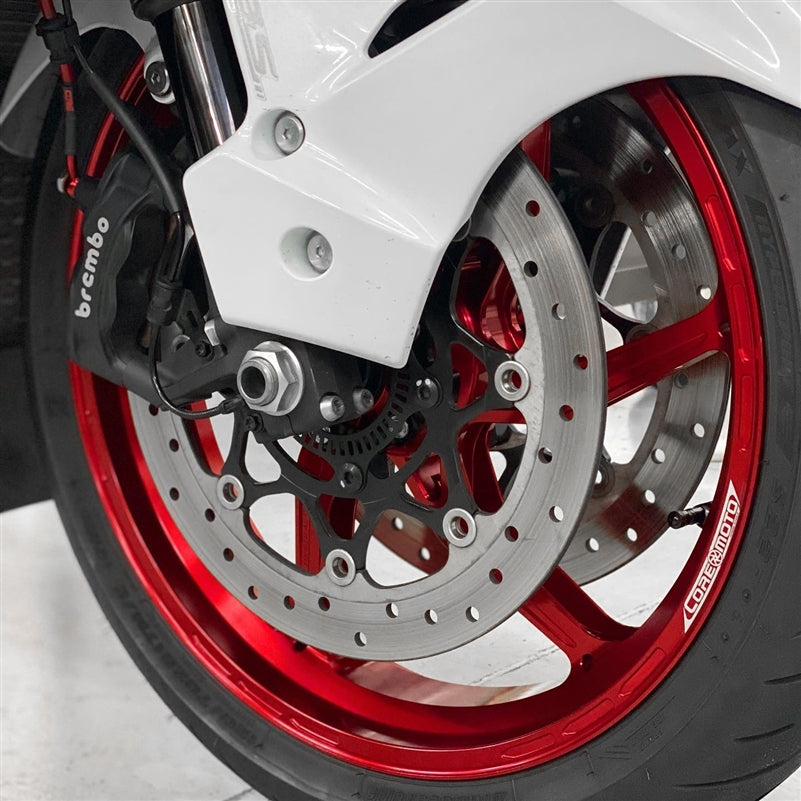

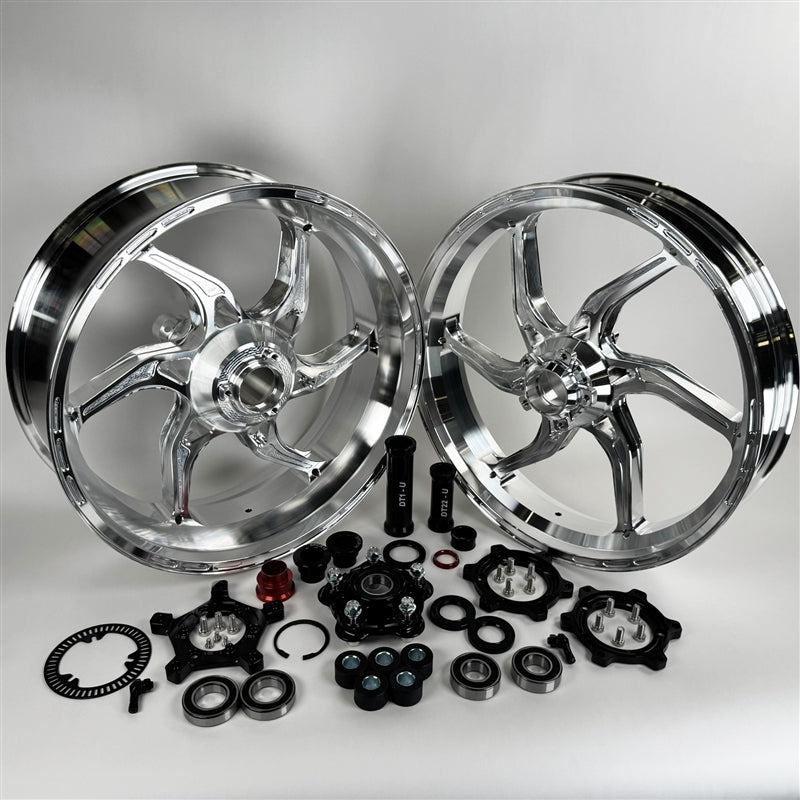

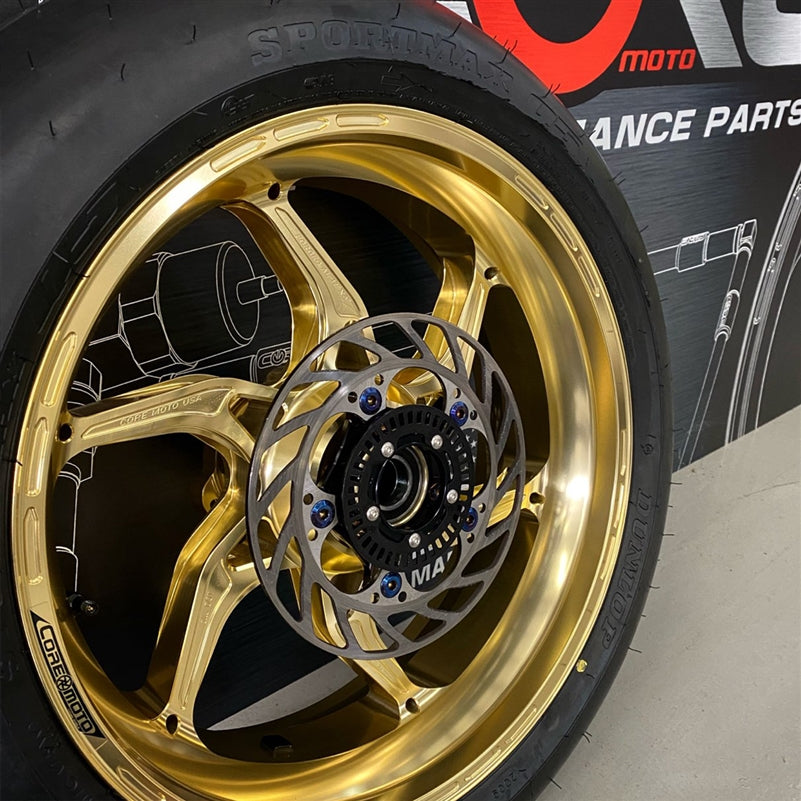

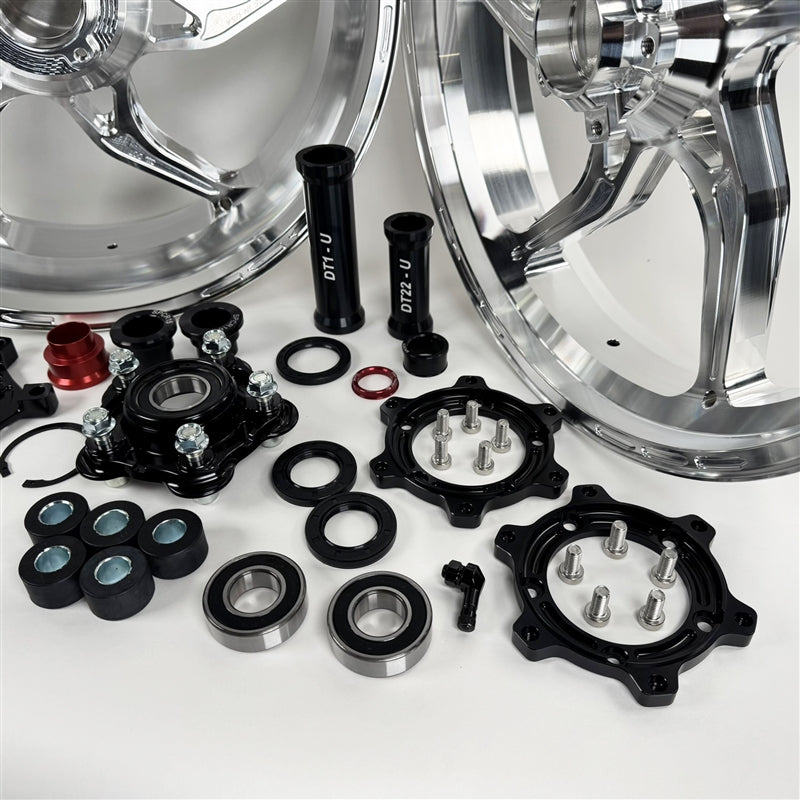

• Includes all spacers, bearings, and accepts OEM rotors

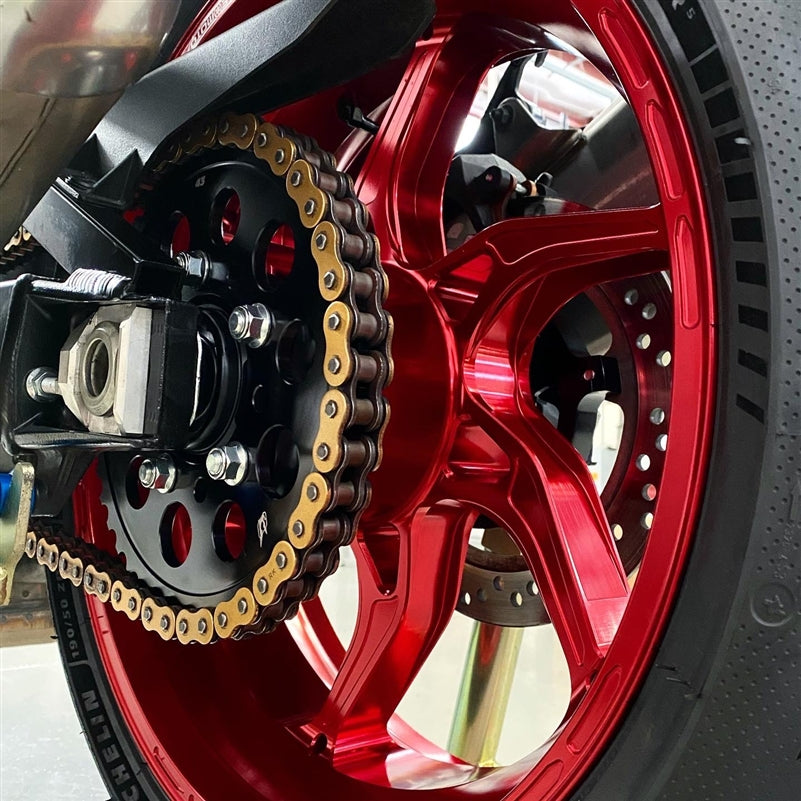

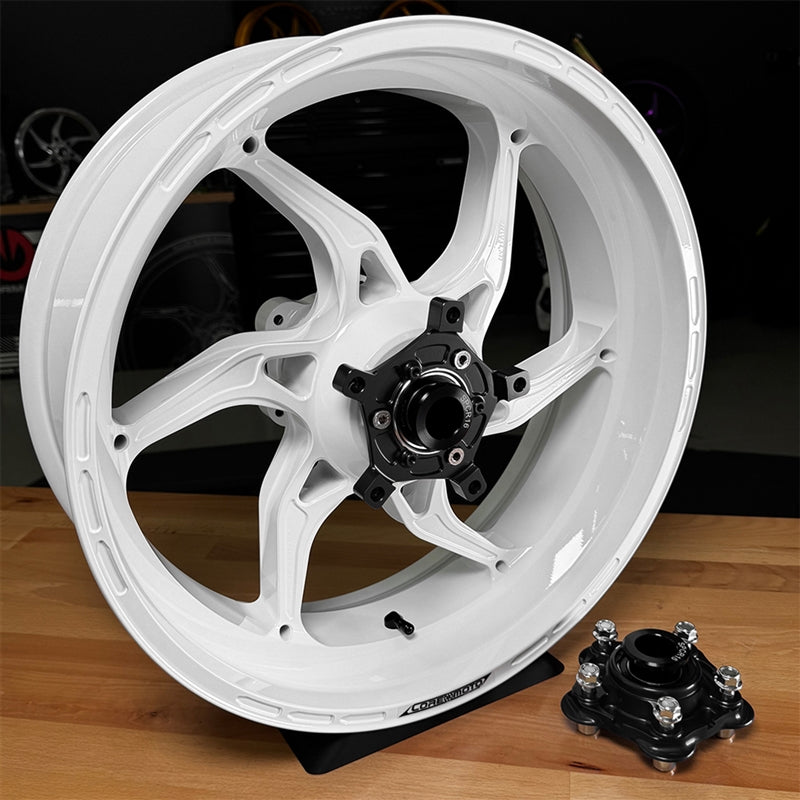

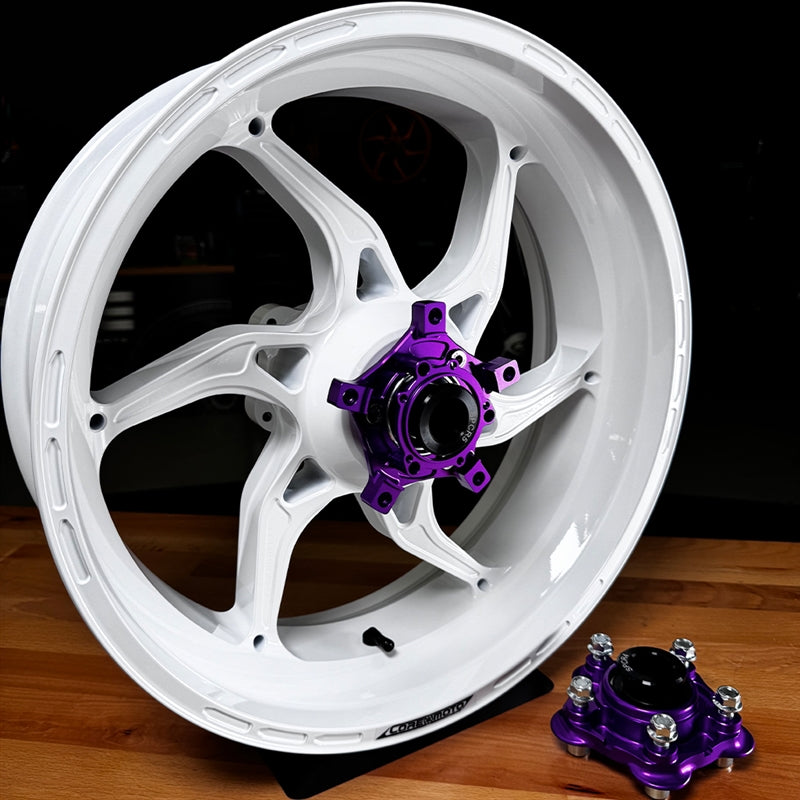

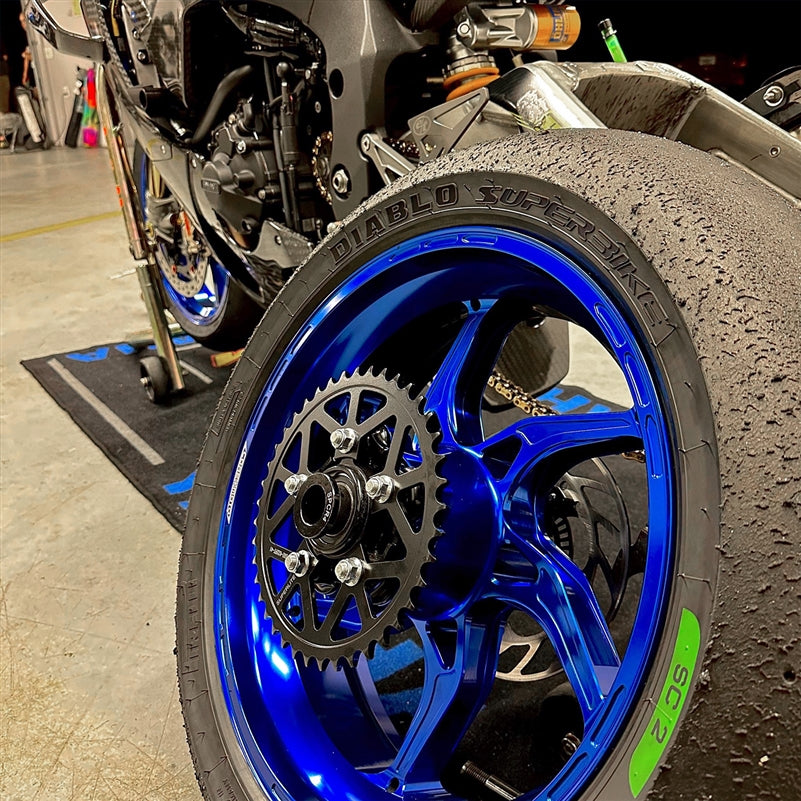

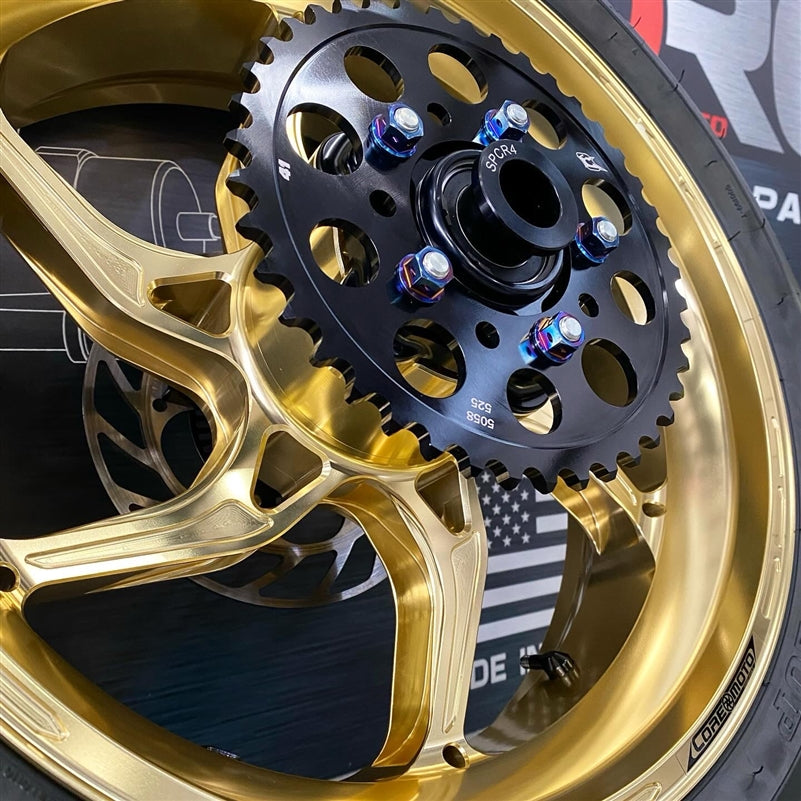

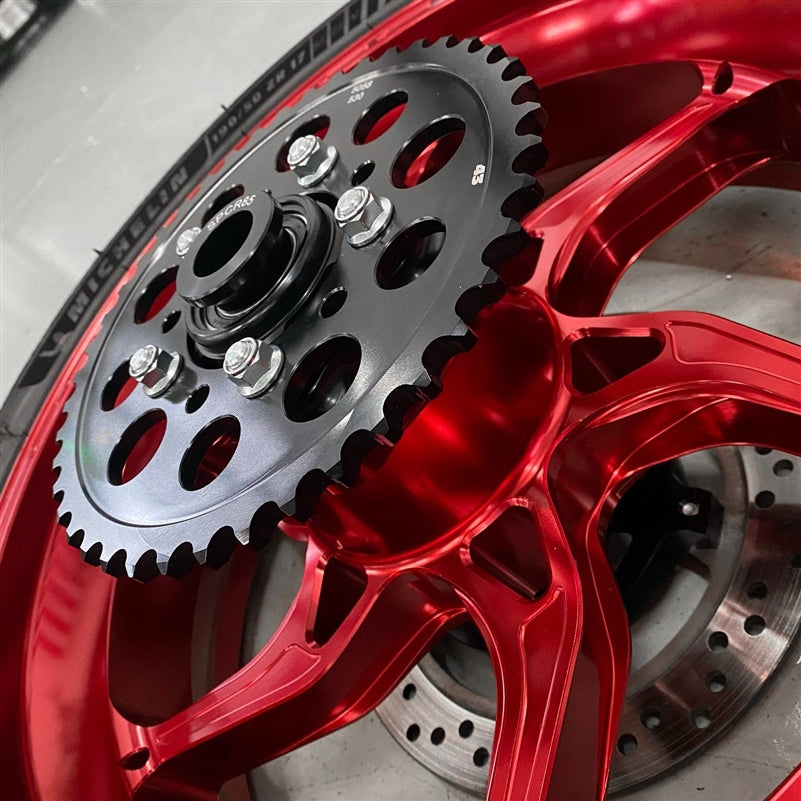

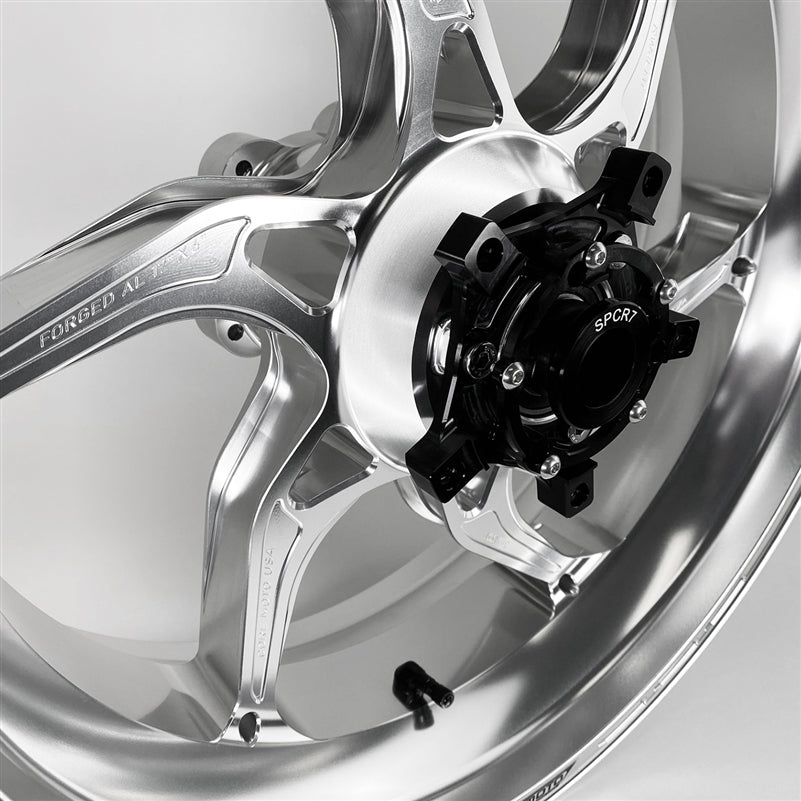

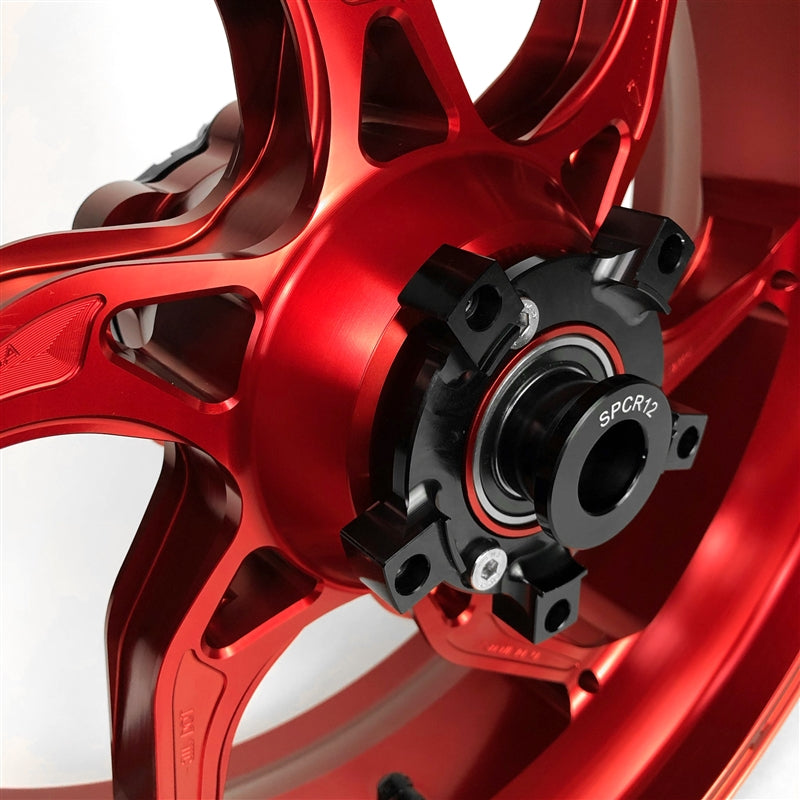

• An aftermarket 5-bolt sprocket is required — a free sprocket matched to your OEM pitch and tooth count is included with every order (contact us to arrange a different tooth count or pitch)
• Street / track use — DOT, JWL certified

Size: Front 3.50"x17" / Rear 6.00"x17"

Bare wheel weight: Front 5.79 lbs / Rear 7.96 lbs

Note: the front wheel body on 2001-2004 GSX-R1000 requires additional post-anodizing machining before assembly — please allow 3-5 extra business days for this step. This model may also require Suzuki OEM rotor bolts (part number 09106-08160), since some factory-installed bolts from this era have an extra-long shoulder and thread that can interfere with fitment.

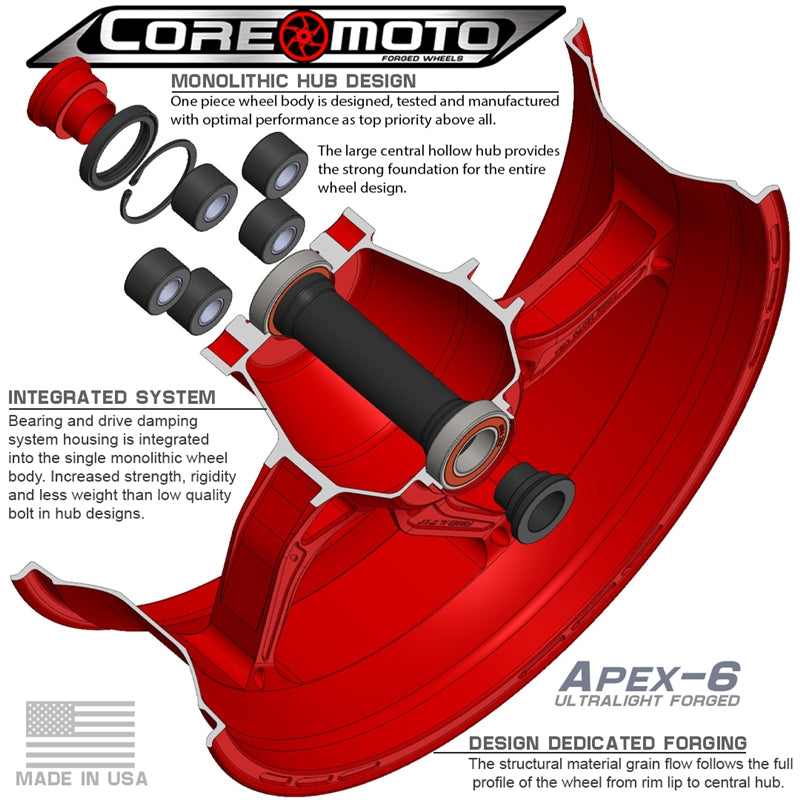

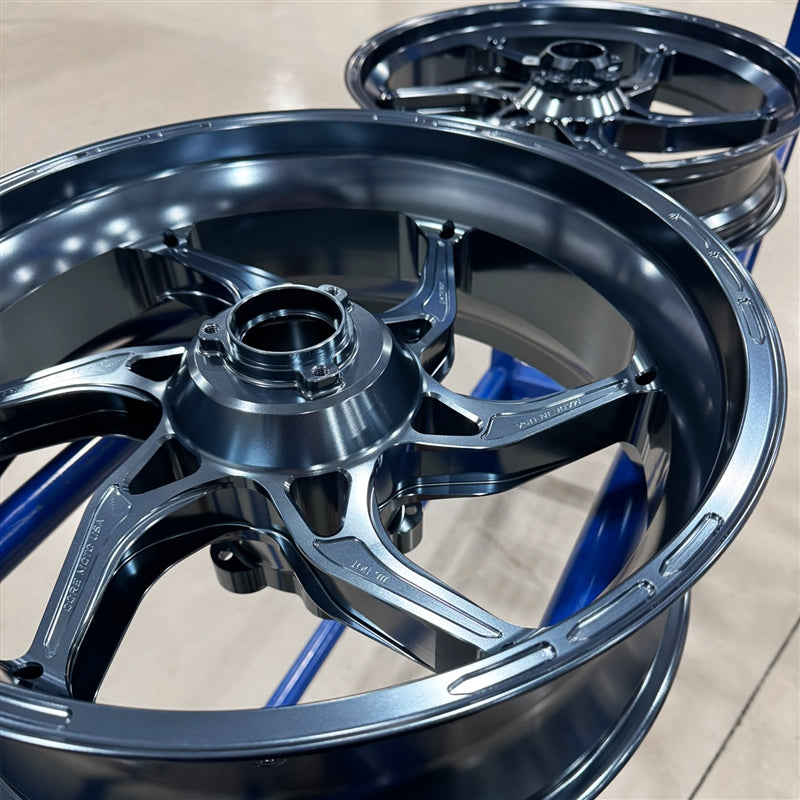

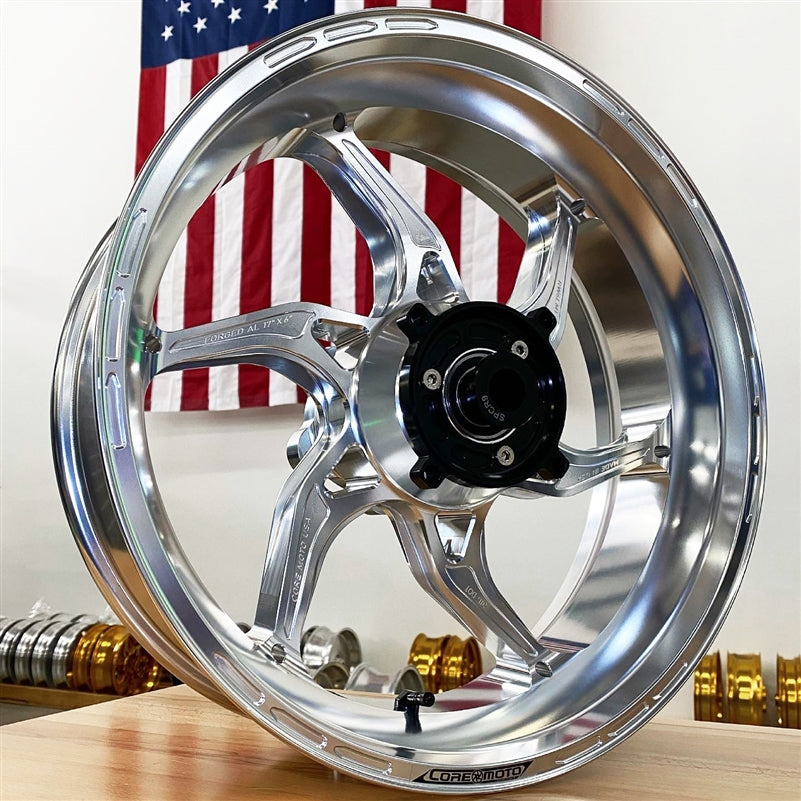

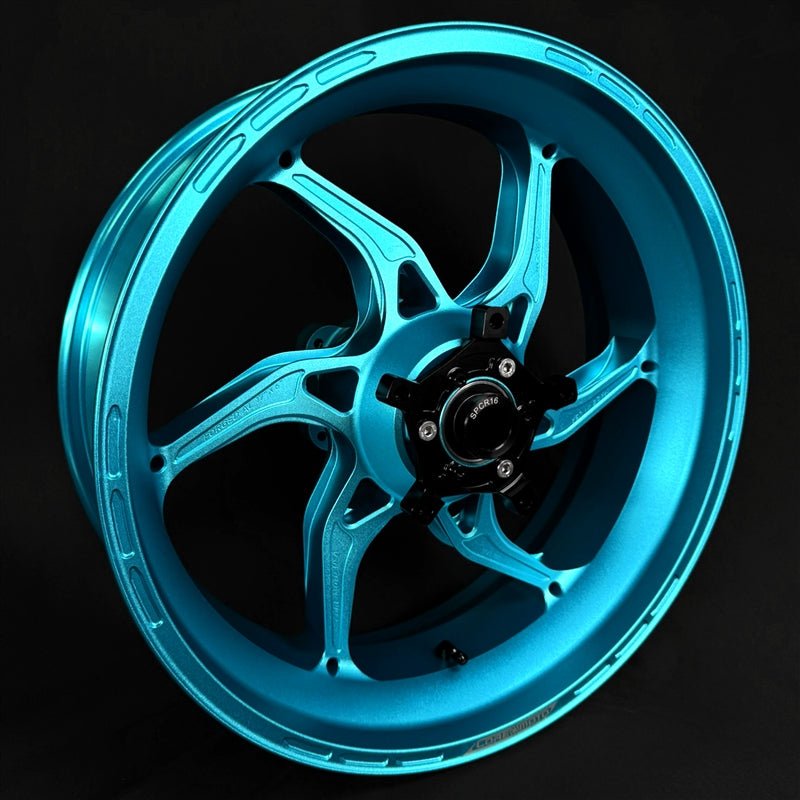

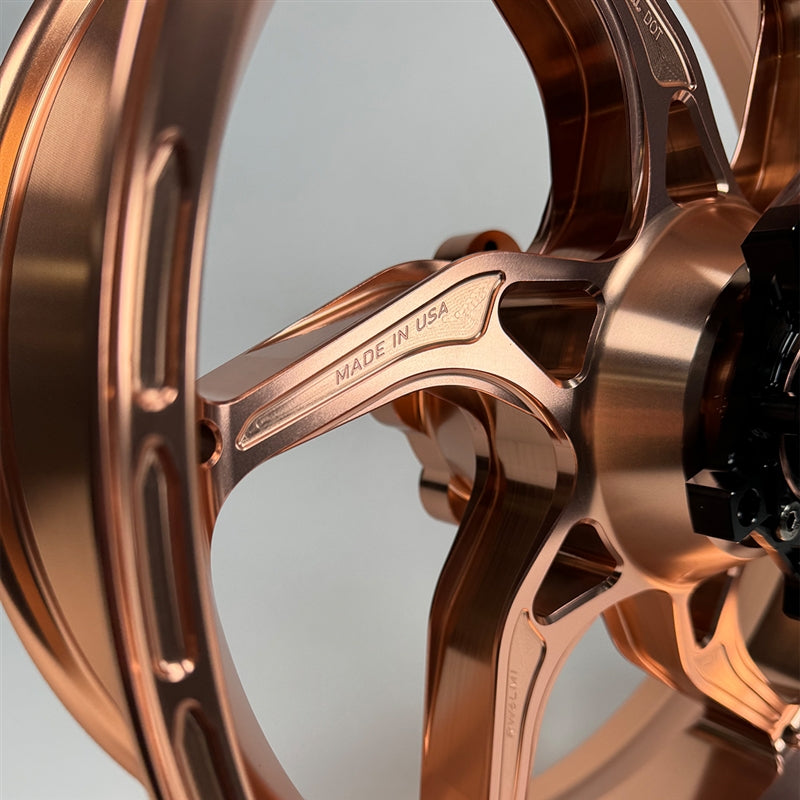

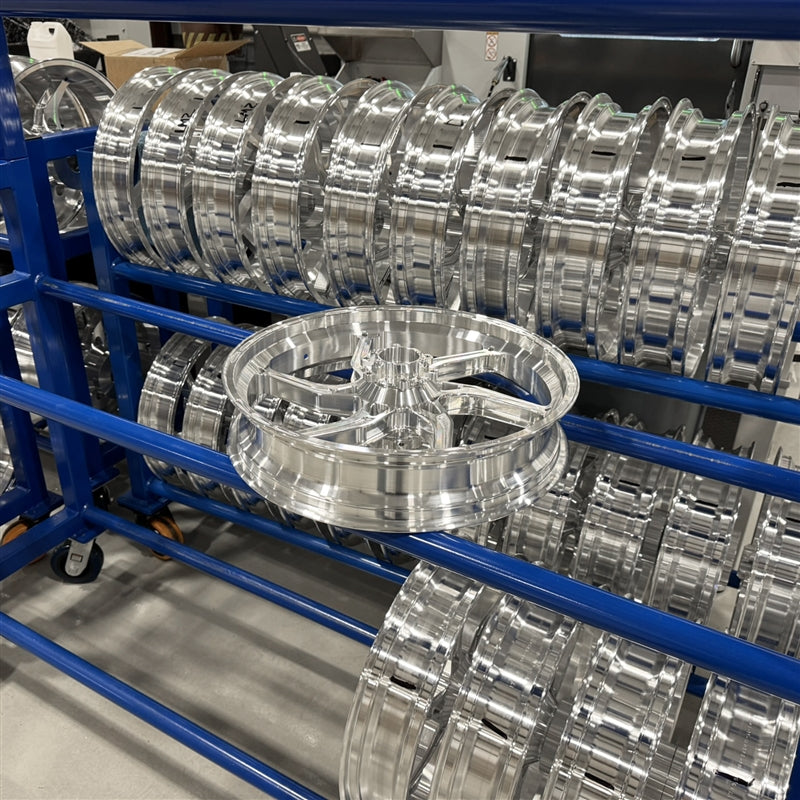

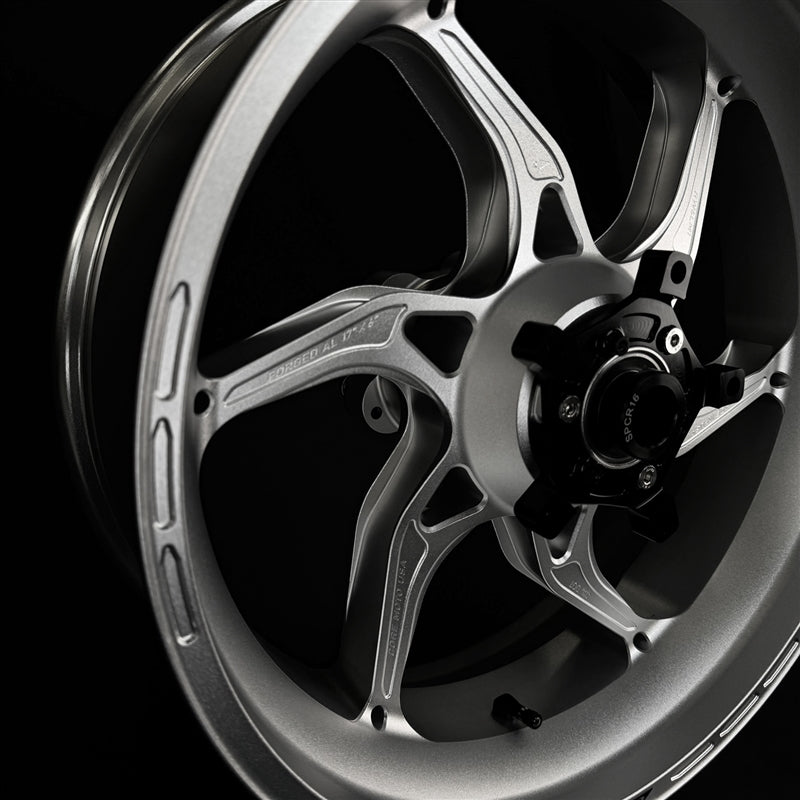

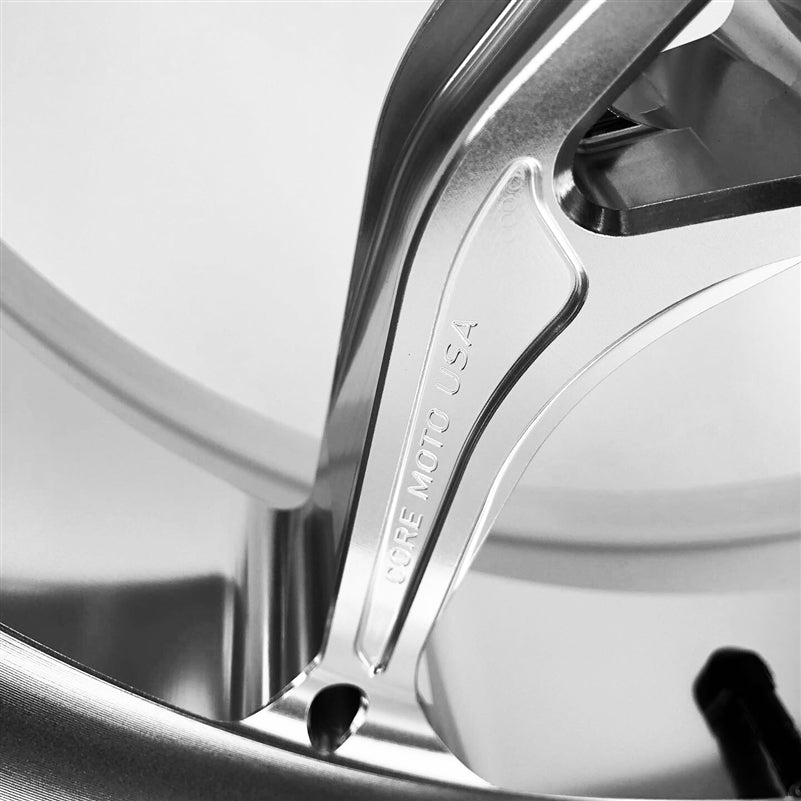

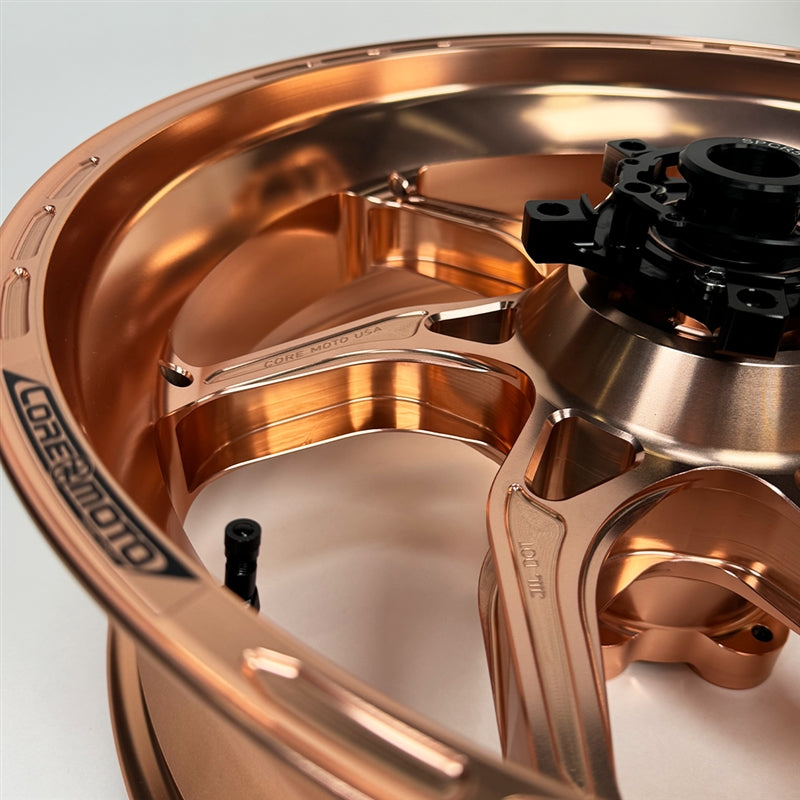

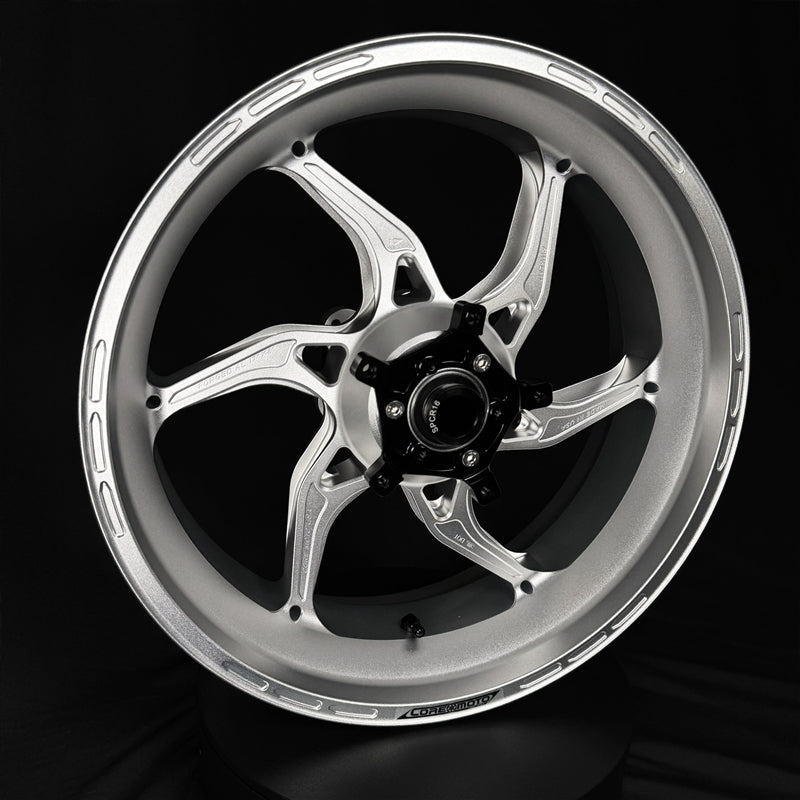

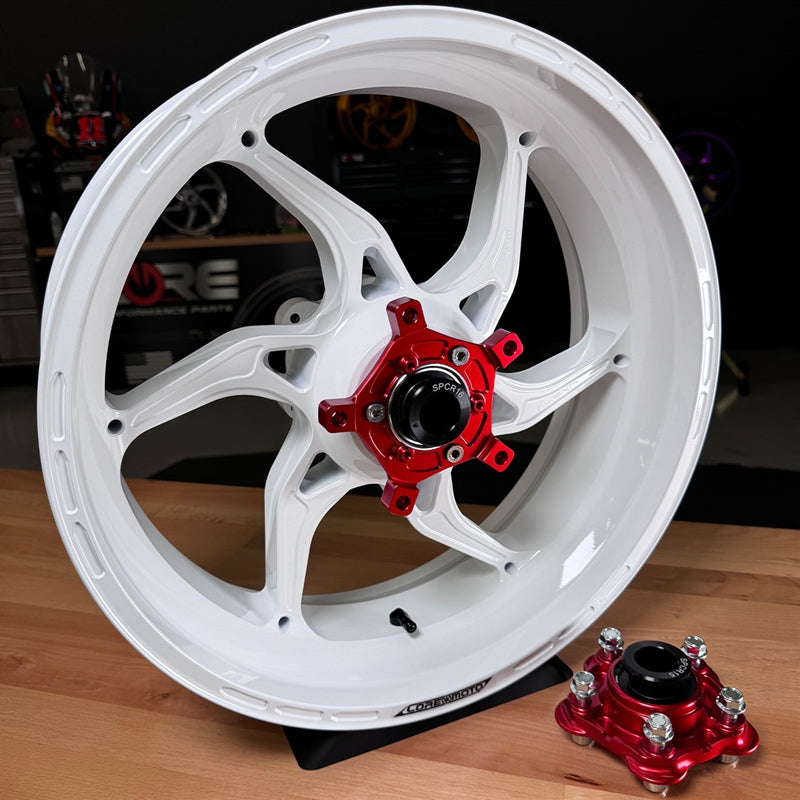

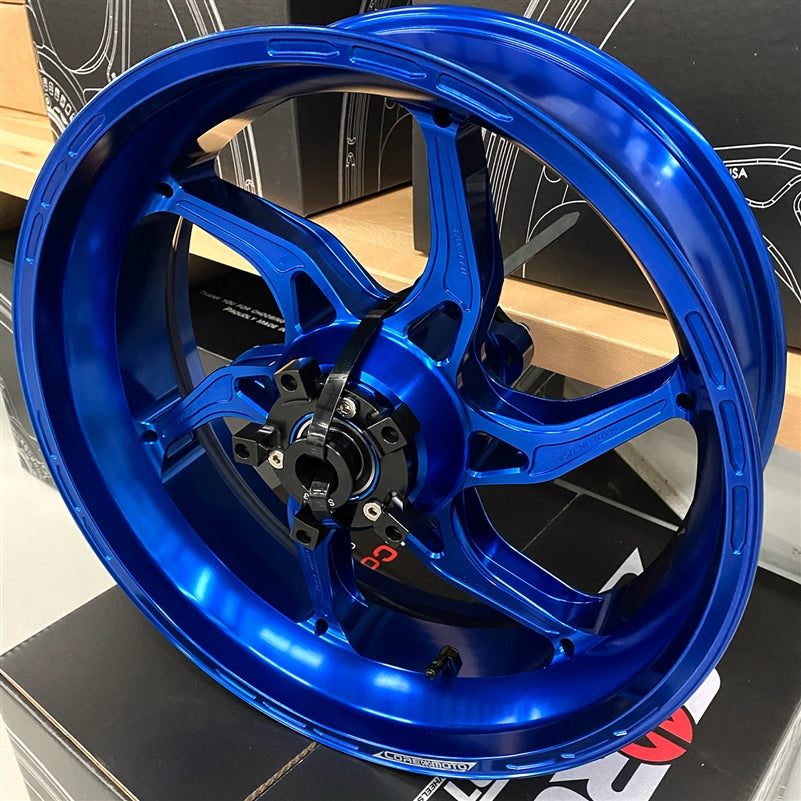

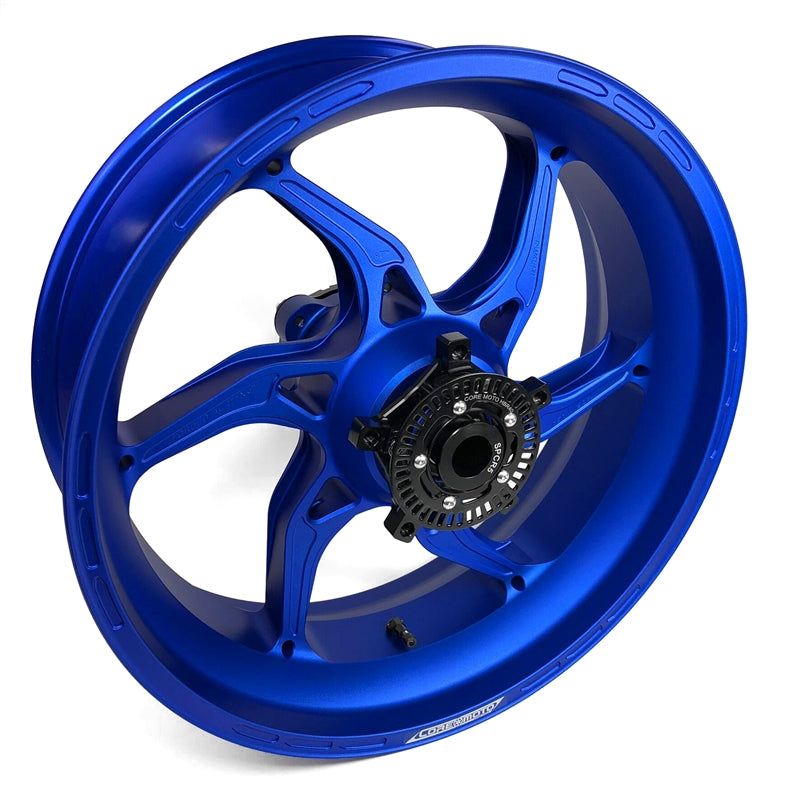

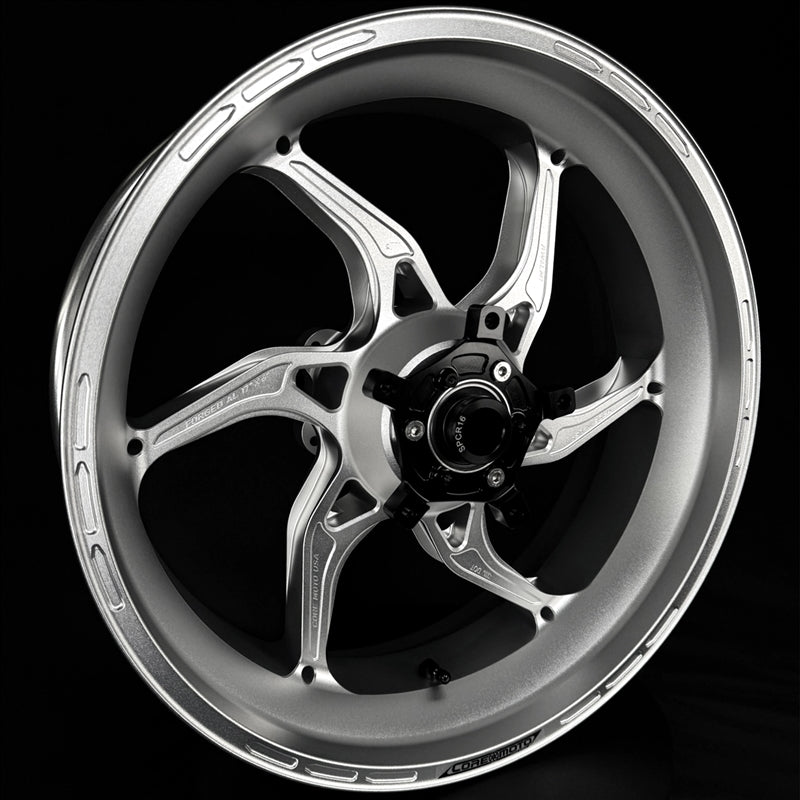

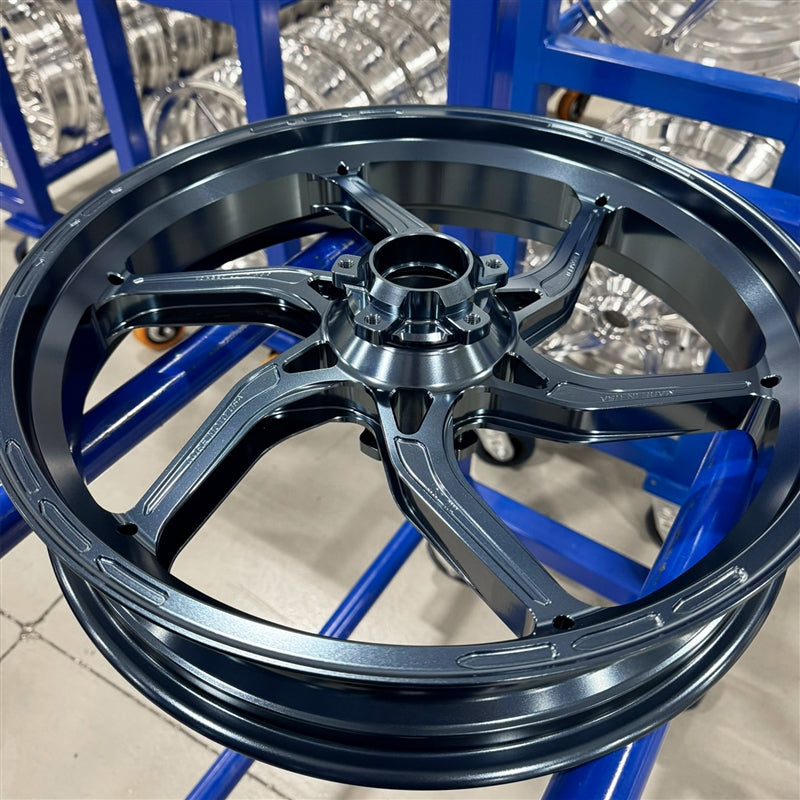

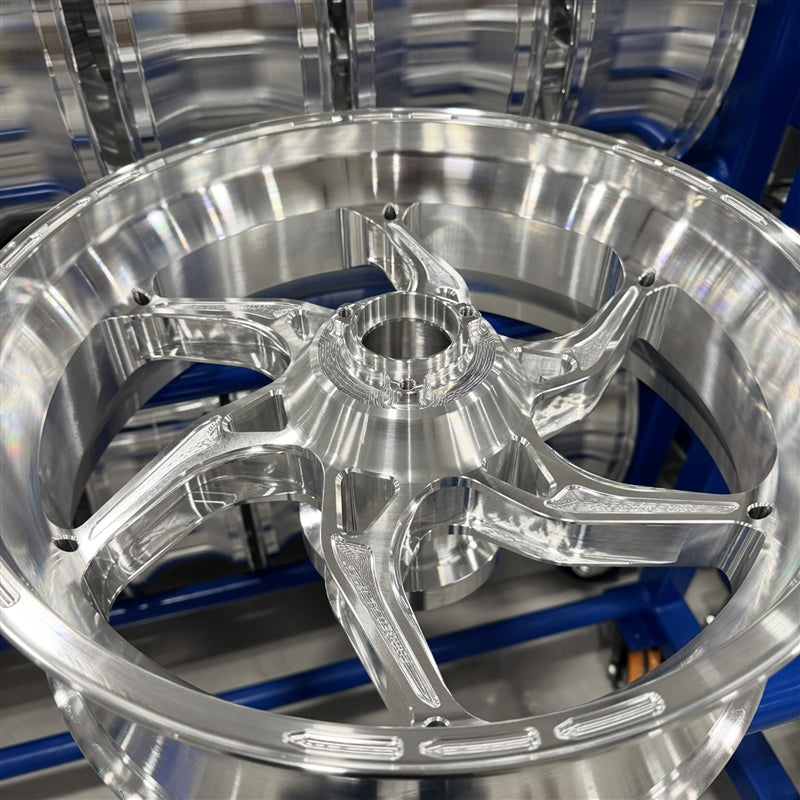

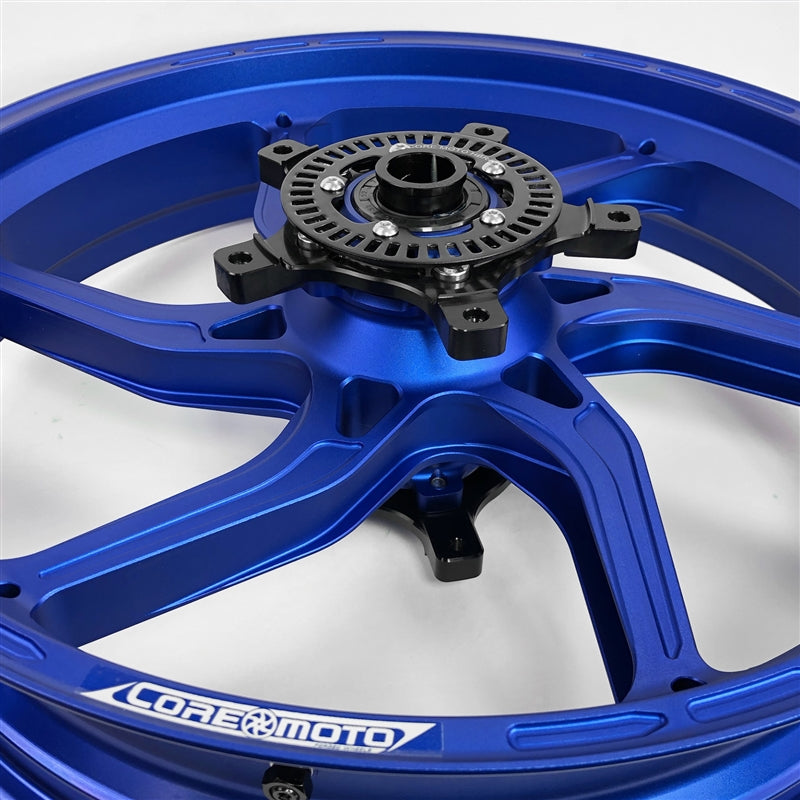

The Apex-6 is a fully monolithic, hollow-hub forged wheel — CAD-designed and forged specifically for this model (not a generic forged blank), then heat treated, turned, machined, anodized, and assembled entirely in the USA. Designed to cut unsprung and rotational weight for sharper suspension response, lighter handling, and shorter braking distances.

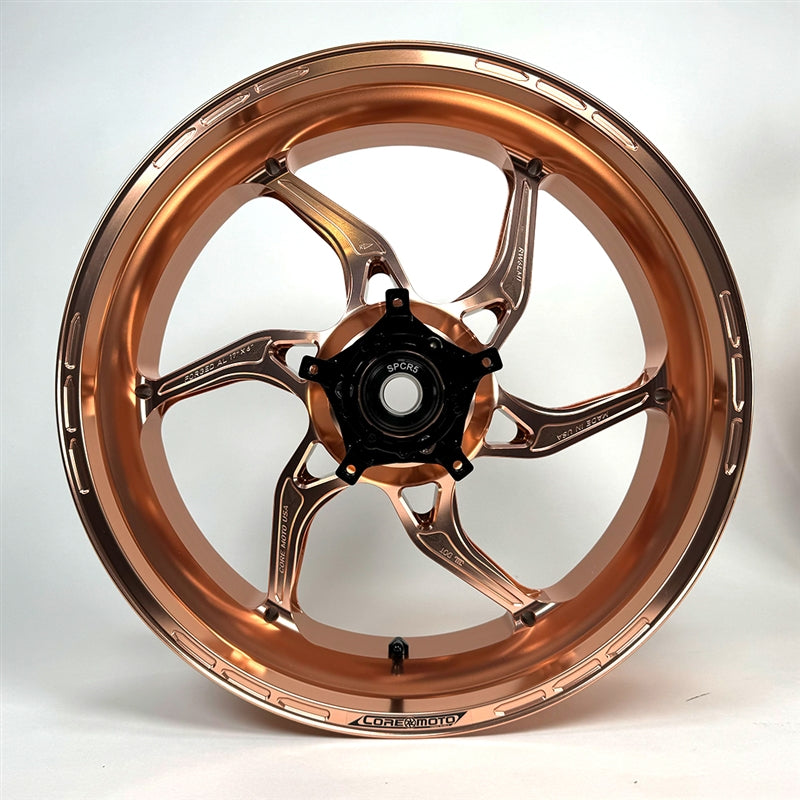

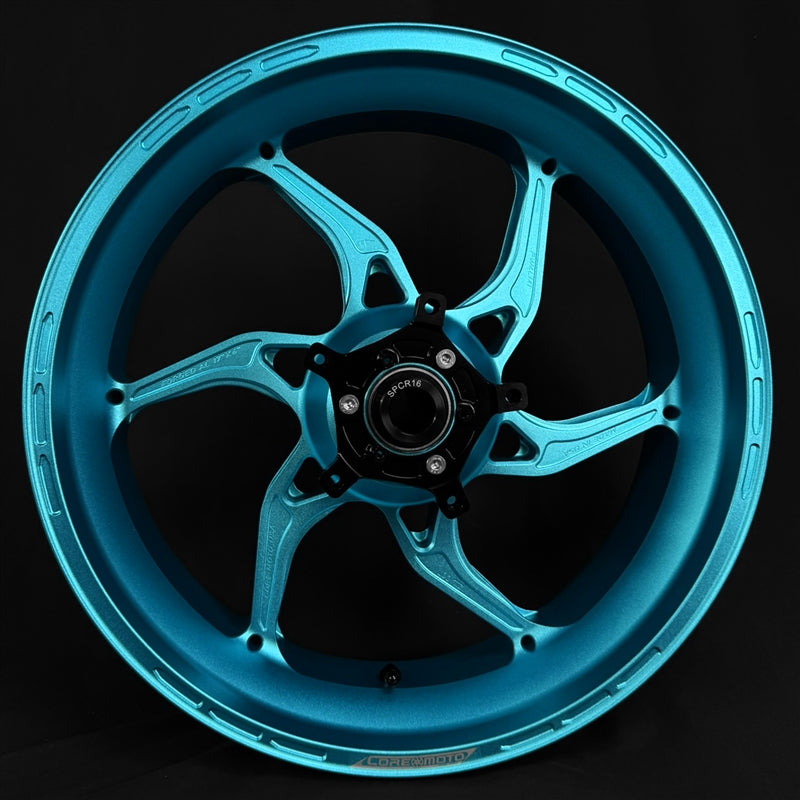

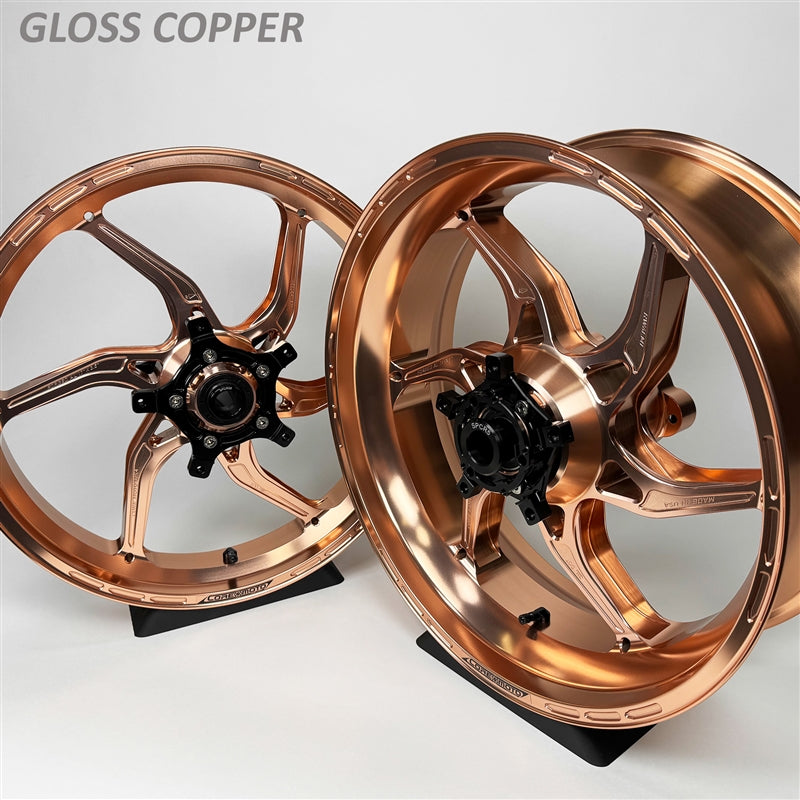

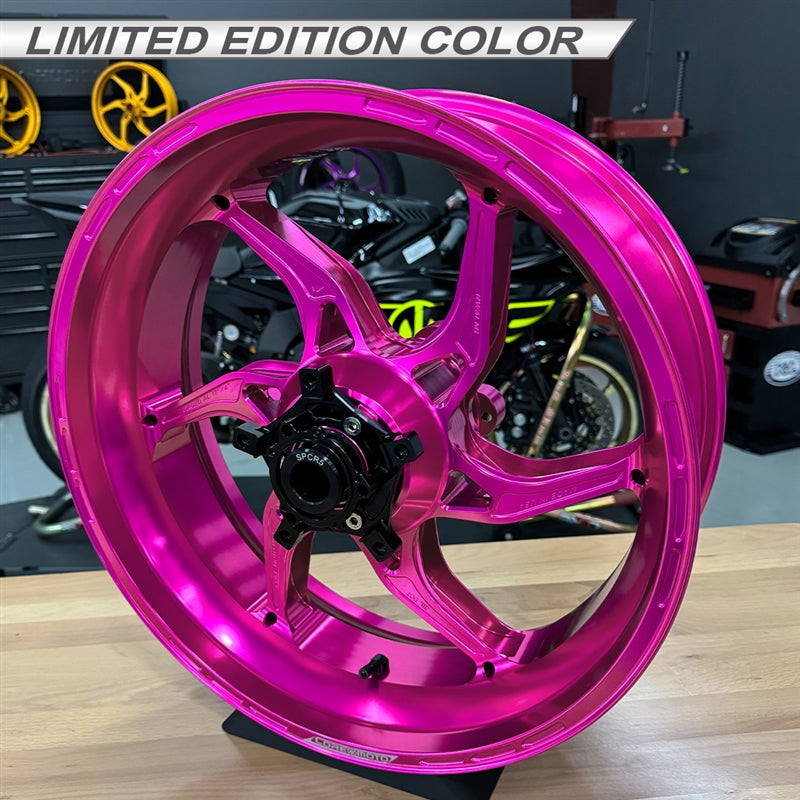

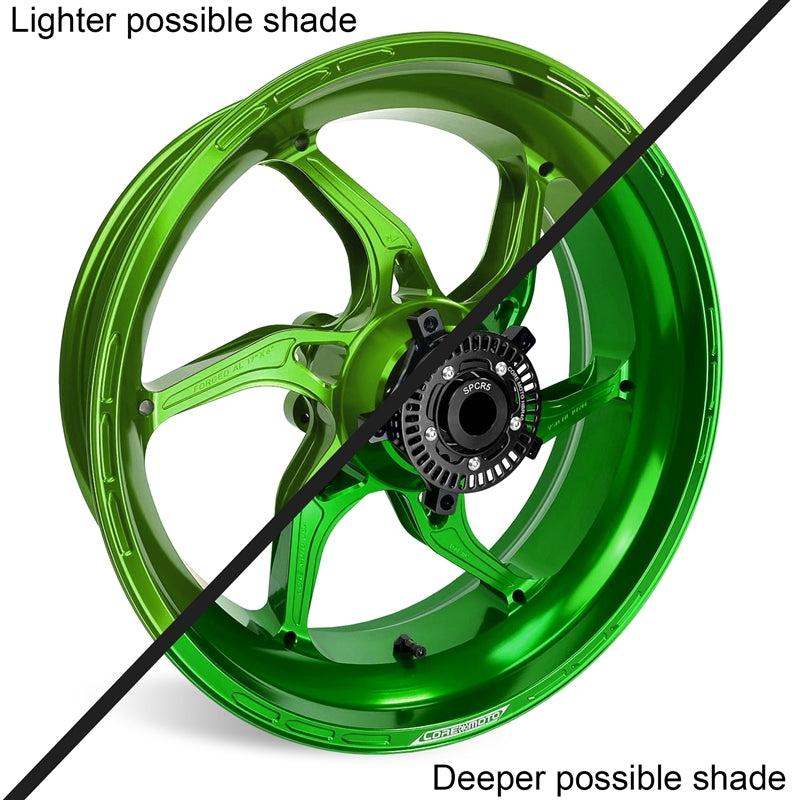

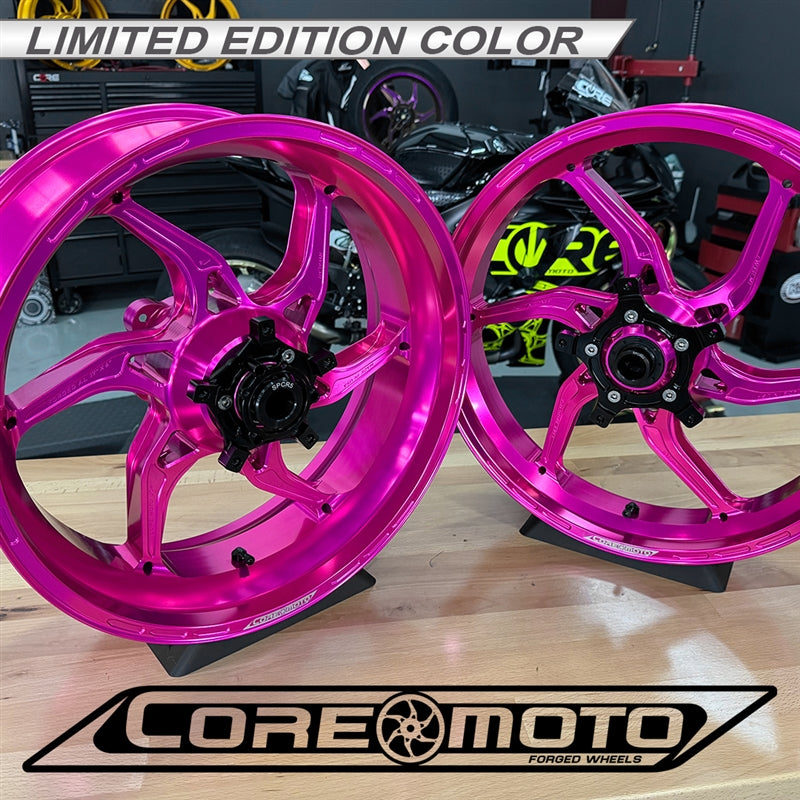

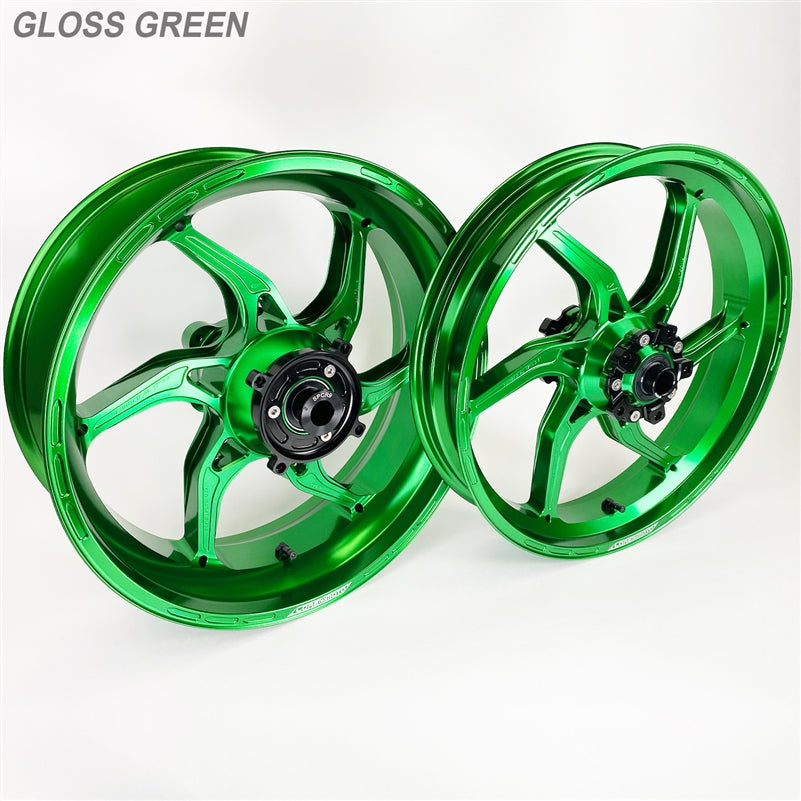

Note: anodized color shades can vary slightly from batch to batch. Wheel sets are paired as front/rear in the anodizing process, so any shade difference between the two is minimal and typically undetectable once mounted.

Need a specific sprocket tooth count or pitch? Contact us — additional custom options are available.
